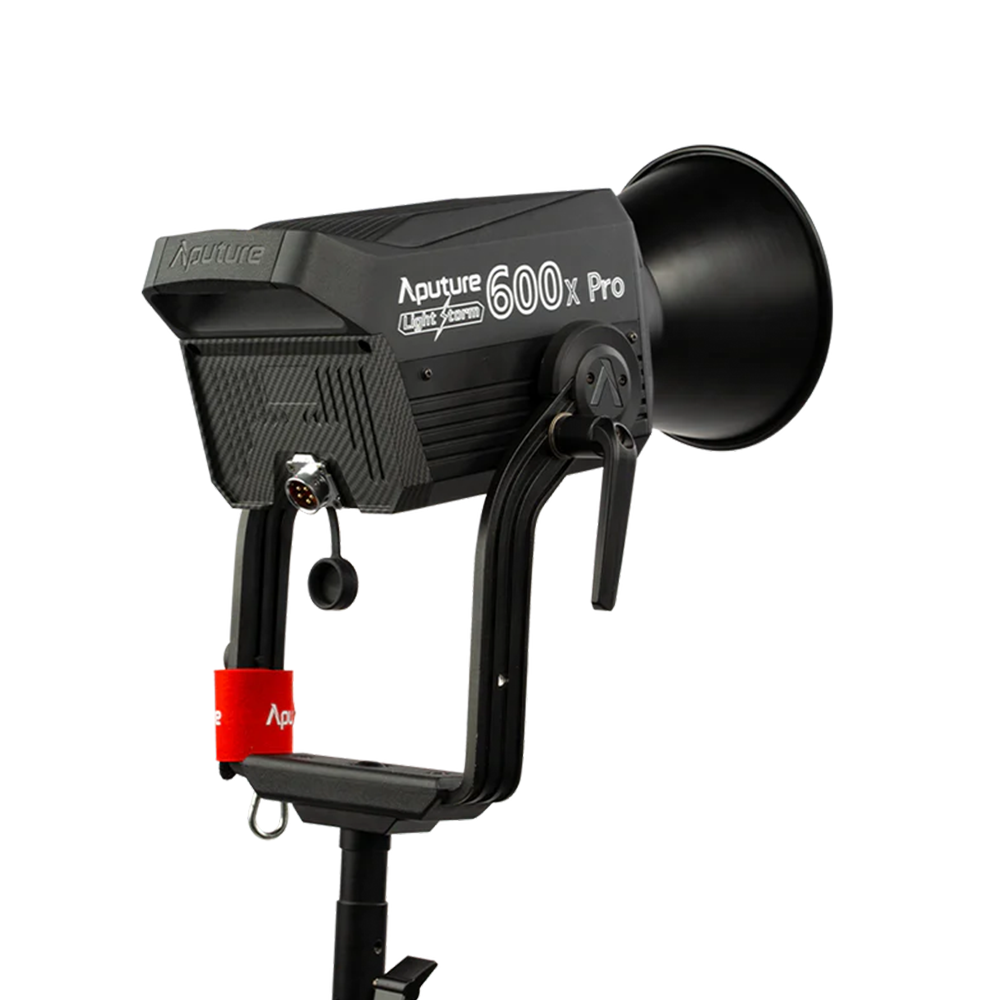

Aputure – LS 600X PRO

Aputure



Boasting an expanded bi-color range of 2700K~6500K while still being able to maintain an impressive output.

SKU: WLKFLAPUTLS600X Categories: , , ,

Description

The LS 600x Pro features a 600W bi-color chipset with precision color blending optical design. Designed with a similar control box interface and Bowens Mount compatibility, the LS 600x Pro features an expanded bi-color range of 2,700K-6,500K and CRI/TLCI scores of 96, while maintaining an impressive output of 5,610 lux at 3 meters with the included LS 600 Series Hyper Reflector, or 18,510 at 3 meters with the F10 Fresnel modifier in 15° spot.

Advanced UI. Featuring a revamped professional UI, the LS 600x Pro allows you to switch between Max Output and Constant Output modes, 9 built-in light effects, and displays easy-to-read intensity and color information in an intuitive way.

Designed for professionals. The LS 600x Pro’s weather-resistant design renders it capable of withstanding inclement weather conditions like light rain and water spray. It also features an intuitive control interface with advanced LCD, Sidus Link App Control, LumenRadio Wireless DMX, and ethernet control.

Features

  • 18,510+ lux @ 3m with F10 Fresnel @ 5,600K
  • 5,610+ lux @ 3m with LS 600 Series Hyper Reflector @ 5,600K
  • 2,700K-6,500K Variable CCT
  • Max & Constant Output Power Modes
  • 0-100% Stepless Brightness Control
  • CRI ≥96, TLCI ≥96, SSI (D56): 74, SSI (Tungsten): 85
  • Multiple Control Methods: 2.4GHz Remote, Sidus Link Bluetooth App Control, Built-In Wireless DMX, ARt-net, Ethernet, 5-Pin DMX512 In & Out
  • Multi-Voltage Battery Plates: 14.4V/26V/28.8V Batteries
  • Supports 48V/15A DC Input Power (3-Pin XLR), Including Battery Power Stations & Block Batteries
  • 4 Dimming Curves
  • 9 Built-In Lighting FX



In The Kit

  • 1x LS 600x Pro Lamp Head
  • 1x LS 600x Pro Control Box
  • 1x LS 600 Series Hyper Reflector
  • 1x LS 600 Series 5-Pin Weatherproof Head Cable (7.5m)
  • 1x Neutrik® powerCON TRUE1 TOP AC Power Cable (6m)
  • 1x VA-Remote RC1+
  • 1x Lightning Clamp
  • 1x LS 600x Pro Rolling Carrying Case



Video

Introducing the LS 600x Pro

The LS 600x Pro changes the game for every level of film production. Its precision color-blending 600W bi-color chipset makes it the brightest bi-color Bowens mount fixture on the market. We’re introducing this groundbreaking light alongside our newest and largest modifier, the Light Dome 150.

Additional information

CCT

2700K~6500K

CRI

≥96

TLCI

≥98

CQS

≥95

SSI (D56)

≥74

SSI (Tungsten)

≥85

TM-30 RF (Average)

95

TM-30 RG (Average)

100

Max Power Output

≤600W

Power Consumption

≤720W

Operating Current

8A

Operating Voltage (Power Supply)

100V~240V, 50Hz/60Hz

Operating Voltage (Battery): V-Mount / Gold Mount (Two Batteries) Half Output

12.5V-16.8V (14.4/15A) 22V-33.6V (26V/8.5A, 28.8V/7.5A)

Operating Voltage (Battery): Voltage V-Mount / Gold Mount (Two Batteries) Full Output

22V-33.6V (26V/18A, 28.8V/16A)

Operating Voltage (3-Pin XLR [48V DC])

48V/15A

Operating Temperature

-20°C ~ 45°C / -4°F ~ 113°F

Battery Charging (Voltage)

16.8V/29.4V

Battery Charging (Amperage)

3A

Control Methods

On-board, 2.4GHz, Sidus Link (Sidus MeshTM), 5-Pin DMX512, Art-net, LumenRadio

Wireless Operating Range (2.4GHz)

≤100m

Wireless Operating Range (Bluetooth)

≤80m

Wireless Operating Range (LumenRadio)

≤100m

Screen Type

OLED

Firmware Upgradeable

USB (FAT16/FAT32), Sidus Link OTA

Cooling Method

Active Cooling

Weatherproofing

Dust & Water Resistant

Cable Type: Max Head Cable Length

7.5m

Cable Type: Power Cable

Neutrik® powerCON TRUE1 TOP AC Power Cable (6m)

Accessory Mount

Bowens Mount

Mounting

16mm / 28mm, 5/8in (Baby Pin) / 1.125in (Junior Pin)

Dimensions

Dimensions: Lamp Head w/o Yoke: 30.2*14.7*14.9cm/ 11.88*5.78*5.86in
Dimensions: Lamp Head w/ Yoke: 30.2X43.6X24.8cm/ 11.88*17.16*5.86in
Dimensions: Control Box (V-Mount): 32.3*17.9*14.2cm/ 12.71*7.04*5.59in
Dimensions: Control Box (Gold-Mount): 32.3*17.9*14.2cm/ 12.71*7.04*5.59in
Dimensions: Case: 62.5*43.5*39cm / 24.61*17.13*15.35in

Weight

Weight: Lamp Head w/ Yoke: 5.16Kg / 11.37lbs
Weight: Control Box (V-Mount): 4.89Kg/10.78lbs
Weight: Control Box (Gold Mount): 4.89Kg/10.78lbs
Weight (Total w/ Case): 19.07 kg/42.04lbs

Downloads

User Guide Download
