Arri – L7-C Fresnel

Arri



Cut. Shape. Focus. Tune.

SKU: WLLARRIL7CFLE2 Categories: , , , ,

Description

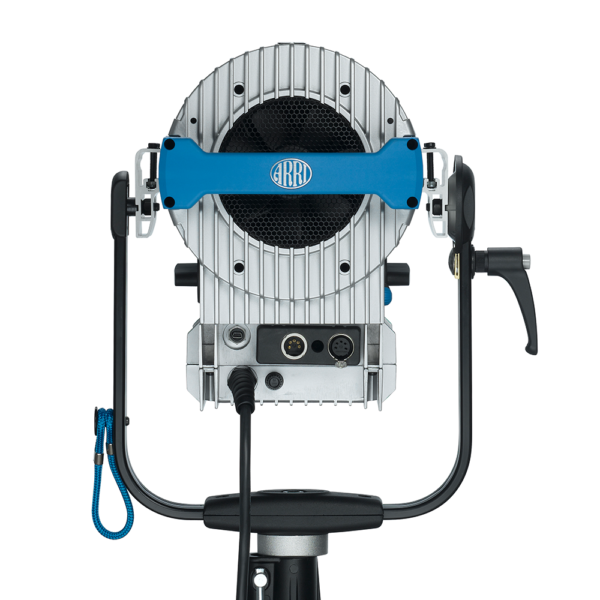

The Arri L7C LED Fresnel is a 100-0% dimmable and a fully tuneable white light source, allow-ing you to match existing fixtures with colour temperatures from 2,800K to 10,000K. The on-board controller allows full minus green to plus green adjustment as well as RGB+W colour mix-ing with hue and saturation control, enabling matching of specific shades and skin tones. All functions can be controlled via DMX or on-board control panel.

Video

ARRI L-Series LED Fresnel: Quality and Versatility

ARRI’s L-Series line of LED Fresnels is based on a few core concepts: tuneability, color fidelity and quality.

Additional information

Optical System

Focusable Fresnel
Light Aperture / Lens Diameter in mm

175 mm
Light Aperture / Lens Diameter in inch

7"
Beam Angle

15° to 50° Half Peak Angle
Handling

Adjustable Sliding Stirrup, High-Strength Tilt Lock / Pole Operation Option (Pan, Tilt and Focus)
Mounting

28 mm Spigot (Junior Pin)
Tilt Angle

+/- 90°
Lamphead Voltage Input

100 – 240 V ~, 50 – 60 Hz
Power Consumption

220 W Maximum
Power Connection

powerCON TRUE1 (Bare Ends / Schuko / Edison)
Battery Connector

–
Battery DC Voltage Range

–
White Light

2,800 K to 10,000 K continuously variable correlated color temperature
Colored Light

Full RGB+W Color Gamut with Hue and Saturation Control
Color Temperature Tolerance

+/- 100 K (nominal), +/- 1/8 Green-Magenta (nominal)
Color Rendition

CRI Average > 94, TLCI Average > 90
Green-Magenta Adjustment

Continuously adjustable (Full Minusgreen to Full Plusgreen)
Dimming

0 to 100 % continuous
Control

5-Pin DMX In and Through, On-Board Controller, Mini-USB
Wireless Control

Not integrated, via SkyLink
Remote Device Management (RDM)

DMX Setup, Hour Counter and Standard RDM Commands
Software / Mini-USB Interface

DMX Setup, Fixture Status and Firmware Upgrade through PC
Housing Color

Blue/Silver, Black
Ambient Temperature Operation

-20 to +45° C (-4 to +113° F)
Protection Class / IP Rating

I / IP20
Estimated LED Lifetime (L70)

50,000 hours
Estimated Color Shift Over Lifetime (CCT)

+/- 5 %
Certifications

CE, CB, ENEC, cNRTLus, FCC, PSE
