Astera_Titan-Tube-Set-of-8_1Astera_Titan-Tube-Set-of-8_1

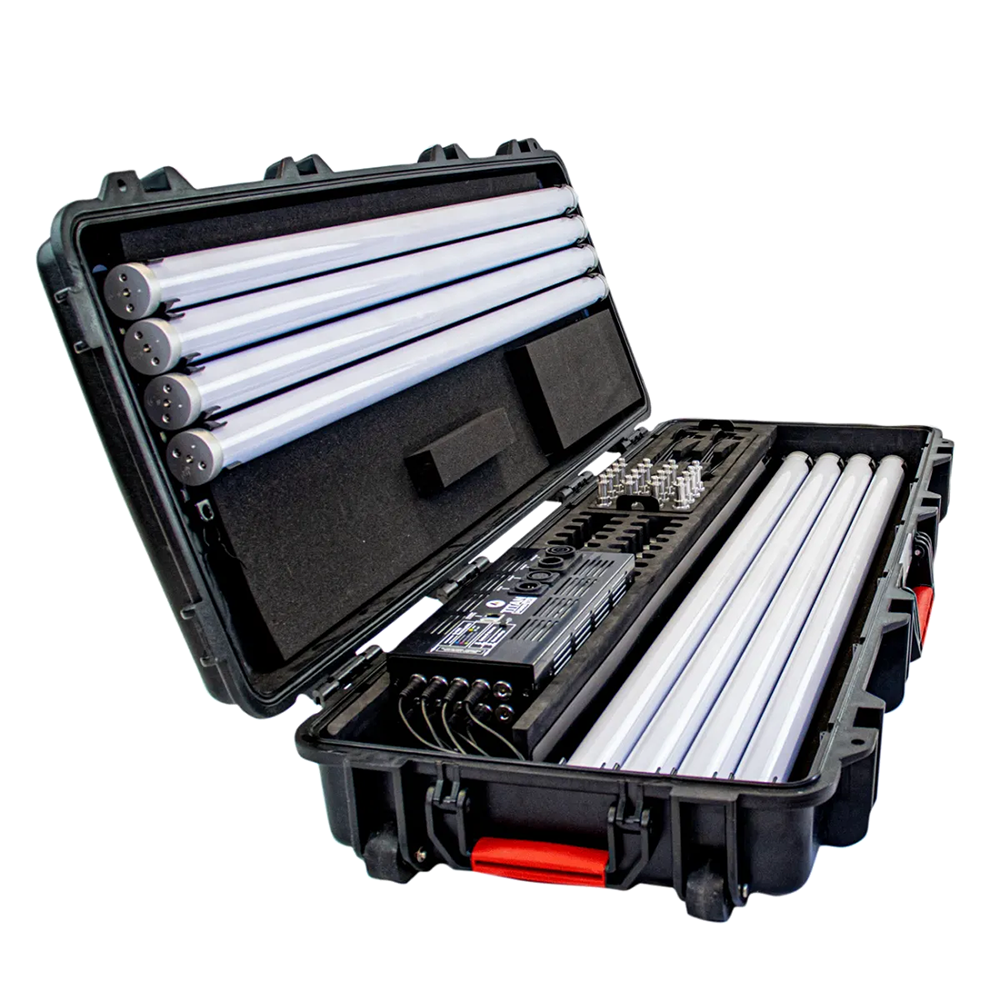

Astera – Titan Tube Set of 8

Astera

The ultimate film lighting tube for TV, cinema and photography.

Description

Titan is the ultimate LED tube for filmmakers, TV studios and any creative person. It emits powerful, tunable white with ultra-high color rendering as well as colored light which can be applied to individual pixels or the whole tube. The tube offers unlimited range of usage; indoor or outdoor, AC-powered or on battery, on the go with the AsteraApp, with wired or wireless DMX.

Feature Quick View

  • Talkback+: Detect all available lights, set them up, check their status, configure DMX addresses and DMX profiles.
  • Effects: Quickly build programs out of colors and effects, trigger them or make them match a beat.
  • Scheduled StandBy: Switch lights into power-saving standby and schedule them to wake up when the production starts.
  • Anti-Theft: The lights give visual and audible alarm and send notification to the AsteraApp if they are being moved during an event.
  • Seamless Runtime: Set the length of your production and be sure that your lights won`t run out while still getting the maximum brightness.
  • Flicker Free: Scrambled PWM technology to avoid flickering when filming.
  • Dynamic PowerBoost: This exclusive feature makes the light able to display the maximum brightness at all time and intensify non-white colors.
  • DJ Feature: Auto BPM analyzes the beat and matches programs to it, flash buttons can trigger special effects while being held down.
  • TruColor Calibration: Individually calibrated lights lead to 100% color consistency and exact color reproduction of color temperature and filter gels.
  • Green/Magenta Correction: Adjust green/magenta during content creation to reduce postproduction work.
  • Emergency Lights: Switches to white light when AC power is cut to keep your event safe
  • Other Features: The AsteraApp™ is packed with many additional items and new features are frequently added via software update.

Video

Titan Tube Teaser Trailer

Titan Tube was specially designed for the Film, Broadcasting and Cinema industries.

Additional information

LED Engine

Titan LED Engine

Colors

RGBMintAmber

Total LED Power

72 W

LED Power draw

48 W

Luminous Flux 3200K

2535 lm

Luminous Flux 4000K

2900 lm

Light Output 3200 K @ 1m

708 lx

Light Output 4000 K @ 1m

785 lx

CRI(Ra)/TLCI 3200-6500K*

≥96

Beam Angle

135° x 115°

Field Angle

175° x 160°

Strobe

0-25 Hz

Pixel

16

Battery Runtime

Up to 20 hours

Battery Runtime Max Brightness

1h 45min

Battery Lifetime

70 % after 300 cycles

Charging Time (nominal)

3 hours

DC Input

24 VDC – 2 A

DC Connector

5.5 mm x 2.1 mm

AC Input

No

AC Connector

No

Wired DMX

Yes

CRMX Receiver

Built-in

BluetoothBridge BTB

FP1: No
FP1-BTB: Yes

Wireless Protocols

FP1: CRMX, UHF, Bluetooth
FP1-BTB: CRMX, UHF, Bluetooth, WiFi

Wireless Range

FP1: CRMX/UHF up to 300 m / 330 yds
FP1-BTB: CRMX/UHF up to 300 m / 330 yds Bluetooth up to 3 m / 3.3 yds

Infrared Control

Yes

ControlSync

No

TouchSlider

No

Housing Material

Polycarbonate, metal end caps

IP Rating

IP65 (only with FP1-SP)

Ambient Operating Temperature

0 – 40 °C / 32 – 104 °F

Weight

1.35 kg / 3 lbs

Dimensions

Ø43 mm x 1035 mm/ Ø1.7” x H40.7”

Mounting Options

2x M5 thread, 2x Holder (with 2x M5 and 1x 1/4"-20UNC thread), 1x TubeStand

Downloads

User Guide FP1-BTB Download
User Guide FP1 Download
Data Sheet Download



Please note that due to a component shortage, we had to do internal changes to Titan Tube and units manufactured after September 2021, they have the BTB feature built-in and are now called FP1-BTB.
