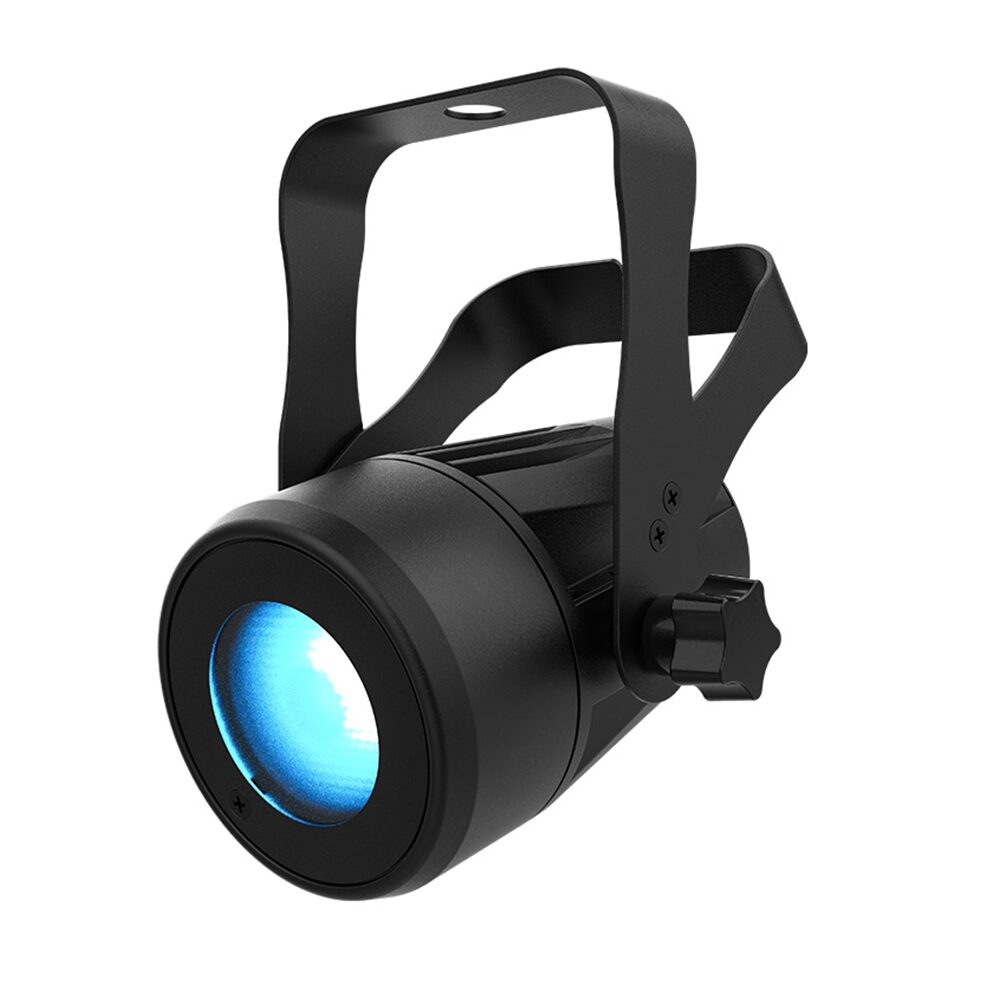

Chauvet Professional - COLORdash Accent 3 front rightChauvet Professional - COLORdash Accent 3 front right

Chauvet Professional – COLORdash Accent 3

Chauvet Professional

20W RGBA LEDs for evenly mixed beams of 9 – 14 degrees of light, get flicker free saturated colours and brilliant pastels with pulse width modulation.

SKU: WLLLPAAC3 Categories: , , ,

Description

COLORdash Accent 3 delivers a tremendous punch of evenly mixed light in a tight 9 degree beam, expandable up to 14 degrees without sacrificing any quality of light. Powered by a 20W RGBA LED, this palm-sized fixture excels at delivering saturated colors and brilliant pastels with a soft, even glow. Variable pulse width modulation allows this fixture to be used for any on camera applications without any issue of flicker and an onboard OLED display effortlessly controls and addresses the fixture via DMX or in a stand-alone mode.

Features

  • Quad-color (RGBA) compact LED wash
  • Extremely compact with excellent output
  • Variable electronic dimmer (0–100%)
  • Simple and complex DMX channel profiles with RDM for programming versatility
  • Double-bracketed yoke doubles as floor stand
  • Easy to use OLED digital display
  • Replaceable filter for additional beam angles
  • Built-in auto programs recalled via DMX or Primary/secondary

Additional information

Optical

Light Source: 1 LED (quad-color RGBA) 20 W, (950 mA), 50,000 hours life expectancy.
Installed Optics: 7°
Beam Angle w/ filter: 14°
Field Angle w/ filter: 27°
Beam Angle w/o filter: 9°
Field Angle w/o filter: 16°
Lumens: w/o filter: 377 lm
Lumens: w/ filter: 393 lm
Illuminance (total) w/ filter: 175 lux @ 5 m
Illuminance (total) w/o filter: 486 lux @ 5 m
Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz
Dynamic Effects

Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 25 Hz
Standalone Color Mixing: Yes
Dim Modes: 5
Built-in Automated Programs: Yes
Construction / Physical

Dimensions: 163 x 133 x 80 mm
Weight: 2.0 lb (0.9 kg)
Exterior Color: Black
Connections

Power Connection: Edison plug to hard-wired
Power Input: Hard-wired
Data Connectors: 5-pin XLR DMX input and output cable whips
Cable Length (power): 5 ft (1.5 m)
Control

Control Protocol: DMX, RDM
DMX Channels: 4, 7 or 11
Modes/Personalities: 3 personalities (4, 7, 11)
Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 18 W, 0.141 A @ 120 V, 60 Hz
Power and Current: 21 W, 0.098 A @ 208 V, 60 Hz
Power and Current: 20 W, 0.087 A @ 230 V, 50
Certifications / Qualifications

CE, METIP Rating: IP20, dry location

Downloads

Data Sheet Download
Quick Reference Guide Download
User Guide Download
