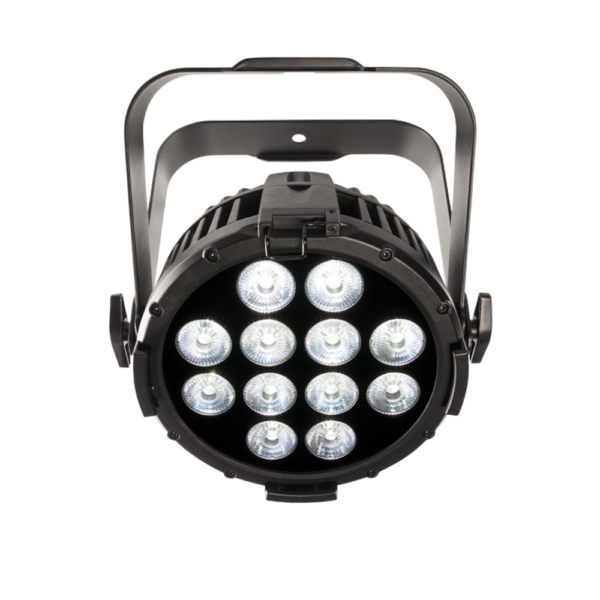

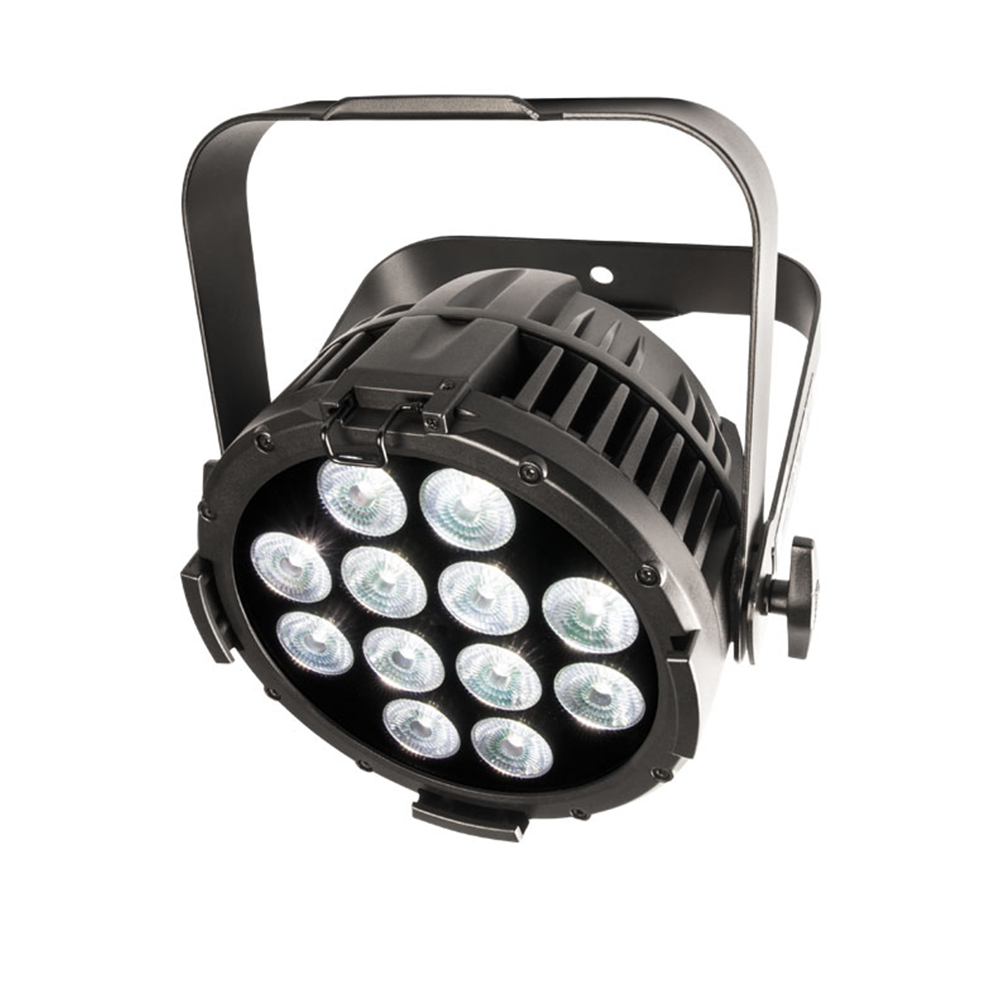

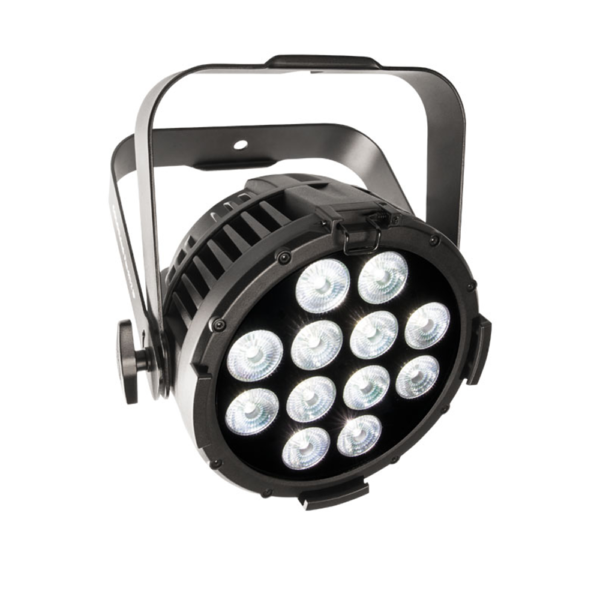

Chauvet Professional – COLORdash Par H12IP

Chauvet Professional
SKU: WLLLPACHCDH12IP Categories: , , , ,

Description

COLORdash Par H12IP is a compact, yet powerful IP-rated RGBWAUV LED wash delivering a beautifully mixed, soft field of richly saturated colors. It features a user-friendly OLED full text display. IP rated connections for power and DMX make setup a breeze.

Features

  • Rugged RGBWA-UV LED wash for events where indoor/outdoor flexibility is needed
  • At home in any weather conditions with IP rated power and DMX connections
  • Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
  • RDM (Remote Device Management) for added flexibility
  • Selectable, smooth dimming curves for eliminate flicker and choppiness in fades
  • Easy to read OLED display with password protection and touchscreen interface
  • Advanced optics provide exceptional color mixing and high efficiency
  • Double-bracketed yoke doubles as floor stand

Video

COLORdash Par H7 & 12 IP by CHAUVET Professional

The COLORdash Par H7 IP and the COLORdash Par H12 IP are compact, yet powerful IP-rated RGBWAUV LED washes delivering a beautifully mixed, soft field of richly saturated colors. They feature a user-friendly OLED full text display. IP rated connections for power and DMX make setup a breeze.

Additional information

Optical

Light Source: 12 LEDs (hex-color RGBAW+UV) 10 W, (650 mA), 50,000 hours life expectancy
Color Temperature (range): 2,800 to 10,000 K
Installed Optics: 15°
Beam Angle: 22°
Field Angle: 34°
Illuminance (total): 1180 lux @ 5 m
Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz
Dynamic Effects

Dimmer: Electronic
Strobe Rate: 0 to 30 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 4
Built-in Automated Programs: Yes
Construction / Physical

Dimensions: 12.3 x 11.9 x 6.9 in (322 x 305 x 177 mm)
Weight: 13.4 lb (6.1 kg)
Exterior Color: BLACK
Housing Material: Aluminum die-cast
Accessory Holder/Gel Frame size: 8.5 in ( 216 mm)
Connections

Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Power Output: Seetronic Powerkon IP65
Data Connectors: 5-pin IP65 XLR
Cable Length (power): 5 ft (1.5 m)
Control

Control Protocol: DMX, RDM
DMX Channels: 6, 8 or 13
Modes/Personalities: 3 personalities (6, 8, 13)
Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 14 units @ 120 V; 23 units @ 208 V; 25 units @ 230 V
Power and Current: 115 W, 0.963 A @ 120 V, 60 Hz
Power and Current: 119 W, 0.575 A @ 208 V, 60 Hz
Power and Current: 120 W, 0.529 A @ 230 V, 50 Hz
Certifications / Qualifications

CE, MET
IP Rating: IP65, outdoor/wet, with pressure equalizing M12 GORE® valve
