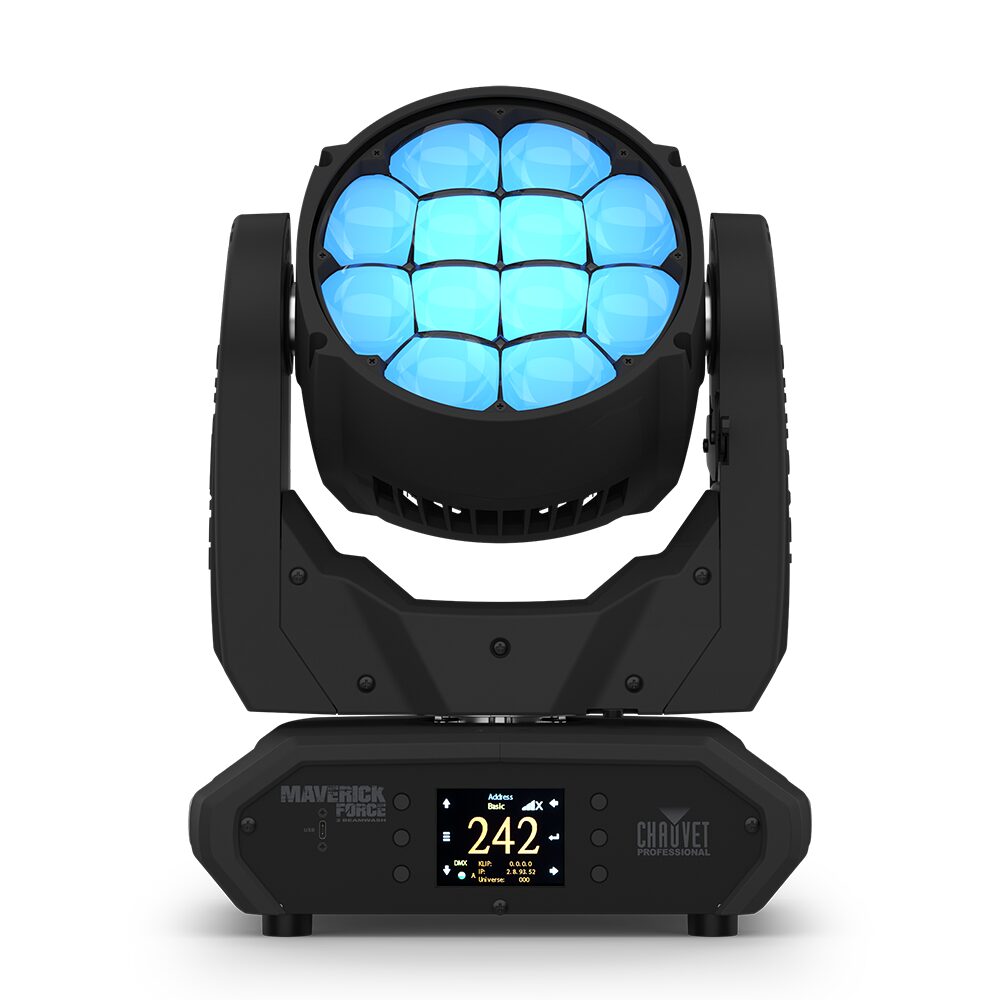

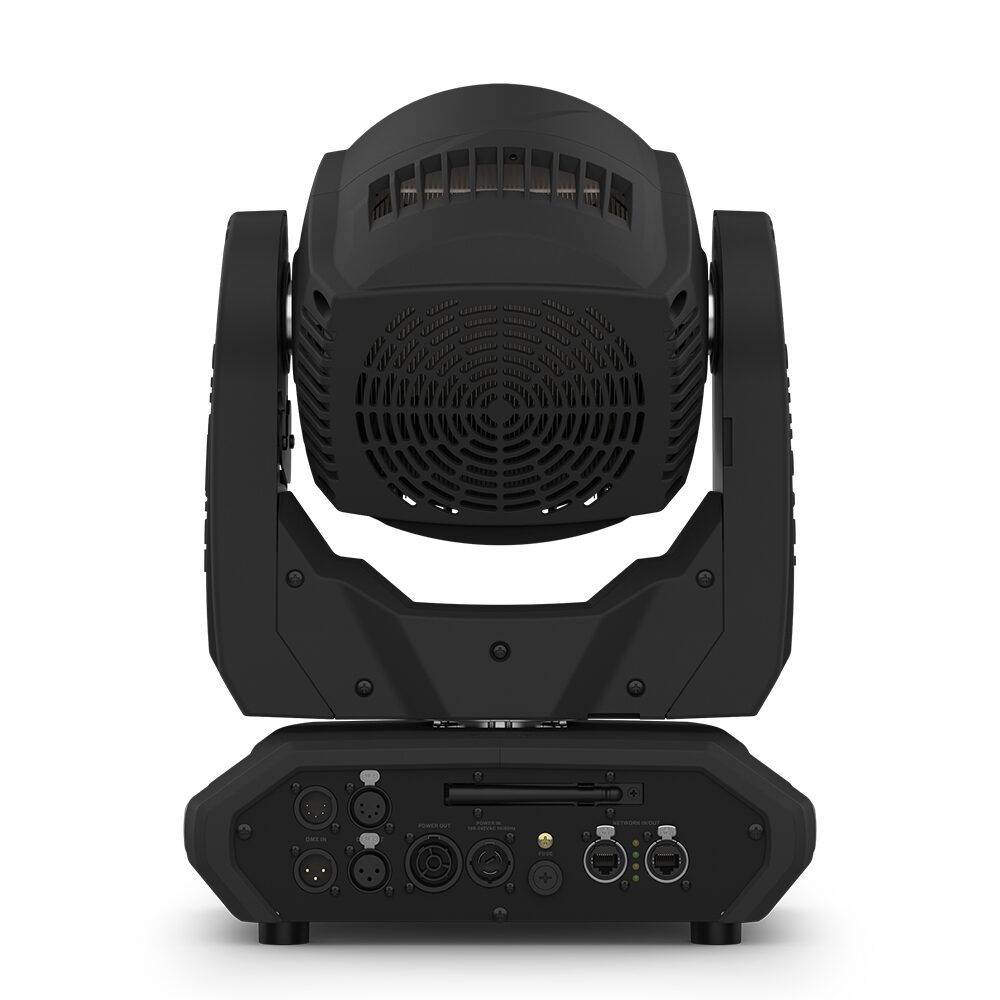

Chauvet Professional – Maverick Force 2 BeamWash

Chauvet Professional

A fast and lightweight RGBW LED yoke fixture that functions as both a beam and a wash, featuring full pixel mapping, a virtual gobo wheel, and a versatile zoom.

Categories: , , , , , ,

Description

A fast and lightweight RGBW LED yoke fixture that functions as both a beam and a wash, featuring full pixel mapping, a virtual gobo wheel, and a versatile zoom.

Ideal for concert touring, live events, and broadcast productions requiring a compact fixture capable of delivering rapid beam, wash, and pixel-mapped effects.

Feature Quick View

  • Features twelve 45W RGBW LEDs for powerful output and rich, saturated color mixing.
  • Offers a versatile 3.7° to 44.1° zoom range for creating tight beams or wide washes.
  • Generates dynamic aerial looks with a virtual gobo wheel featuring background color control.
  • Produces precise whites with a calibrated 7500K point and a 2700K to 8000K CCT range.
  • Supports DMX, Art-Net, sACN, Kling-Net, and W-DMX for versatile system integration.
  • Operates quietly, making it ideal for broadcast studios and sound-sensitive applications.

A lighter, brighter, tighter, faster RGBW LED yoke wash fixture with pixel mapping and zoom. Maverick Force 2 BeamWash incorporates the latest LED and optical technologies to project the narrowest beams and deliver the deepest aerial washes. Foreground and background colors combine for sizzling atmospheric effects instantly with its built-in virtual gobo wheel. Flawlessly even output, full pixel mapping, and smooth 16-bit fades make this fixture a force to be reckoned with, live or on camera. Take control with DMX, RDM, sACN, Art-Net, Kling-Net or W-DMX.

Full Features

RGBW LED Wash Fixture

A versatile yoke wash light featuring full RGBW color mixing, pixel mapping capabilities, and an integrated zoom.

Virtual Gobo Wheel

Create impressive atmospheric effects with a virtual gobo wheel that includes background color control.

Flexible Control Options

Offers complete control flexibility with support for DMX, WDMX, sACN, Art-Net, and Kling-Net protocols.

Calibrated White Point

A user-selectable calibrated white setting provides a consistent 7500 K color temperature at full output.

Battery Backup Display

Configure the fixture without main power using the battery-powered display, which auto-rotates for easy viewing.

Smooth 16-Bit Dimming

Achieve exceptionally smooth fades with high-resolution 16-bit dimming control over the master dimmer and individual colors.

Rapid Movement

Swift and precise pan, tilt, and zoom motors allow for dynamic lighting effects and quick adjustments.

RDM Enabled

Easily perform remote addressing and troubleshooting directly from your RDM-compatible controller.

Professional Power Input

Features a True 1 compatible power input for secure, professional-grade connections.

Easy Setup Presets

Simplify multi-fixture configuration with three setup menu presets and a sync function for quick cross-loading.

Virtual Color Wheel

Instantly access a wide array of pre-mixed colors using the built-in virtual color wheel.

Quiet Operation

Its low-noise performance makes it suitable for a wide range of sound-sensitive environments.

Wide Zoom Range

Adjust from a tight 3.7° beam to a wide 44.1° wash for variable beam sizes.

USB-C Software Port

A convenient USB-C port allows for simple and fast software updates.

Video

Blazing Speed! Maverick Force 2 BeamWash & Force 3 Profile LED Moving Heads by CHAUVET Professional

Maverick Force 2 BeamWash: Add up the latest LED and optical technologies for tight beams, deep washes and sizzling pixel effects

Additional information

Optical

Light Source: 12 LEDs (quad-color RGBW) 45 W (3 A), 50,000 hours life expectancy
Color Temperature (range): 2700 to 8000 K
Beam Angle: 3.7° to 33.6°
Field Angle: 5.8° to 44.1°
Cutoff Angle: 6.5° to 48.6°
Zoom Range: 3.7° to 44.1°
Lumens – Source: 10,800
Lumens – Output: 9,183
Illuminance:
Illuminance (3.7°): 41,355 lux @ 5 m
Illuminance (45.1°): 1,267 lux @ 5 m
Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 15000 Hz
Connections

Power Connection: Seetronic Powerkon IP65
Power Input/Output: Seetronic Powerkon IP65
Data Connectors: 3-pin XLR, 5-pin XLR, Neutrik RJ45 Connectors in/out
Cable Length (power): 5 ft (1.5 m)
Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 620 W, 5.23 A @ 120 V, 60 Hz
Power and Current: 603 W, 2.96 A @ 208 V, 60 Hz
Power and Current: 600 W, 2.68 A @ 230 V, 50 Hz
Breaker Size: F10 A, 250 V
Certifications/Qualifications

Certifications: CE, MET, FCC, CB, UKCA
Temperature (Ambient): 4 °F to 113 °F (-20 °C to 45 °C)
Dynamic Effects

Pan and Tilt: 540°/270°
Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
Dimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Motorized
Strobe Rate: 0 to 20 Hz
Standalone Color Mixing: No
Color Temperature Presets: Yes
Move-in-Black: Yes
Dim Curves: 4
Construction/Physical

Dimensions: 12.91 x 12.60 x 17.09 in (328 x 230 x 434 mm)
Weight: 29.6 lb (13.5 kg)
Exterior Color: Black
Housing Material: High-impact flame-retardant polymer
Control

Control Protocol: Art-Net, sACN, Kling-Net, RDM, DMX, W-DMX
DMX Channels (Single Mode): 20ch, 25ch, 68ch, 122ch or 146ch
Art-Net/sACN Channels (Single Mode): 20ch, 25ch, 68ch, 122ch or 146ch
DMX Channels (Dual Mode) (Movement): 8ch, 20ch, 26ch
DMX Channels (Dual Mode) (Pixel): 36ch, 48ch, 96ch
Art-Net/sACN Channels (Dual Mode) (Movement): 8ch, 20ch, 26ch
Art-Net/sACN/Kling-Net Channels (Dual Mode) (Pixel): 36ch, 48ch, 96ch
Modes/Personalities: 8 personalities (20ch, 25ch, 68ch, 122ch or 146ch 8ch-36ch, 20ch-48ch, 26ch-96ch)

Downloads

Data Sheet Download
User Guide Download
