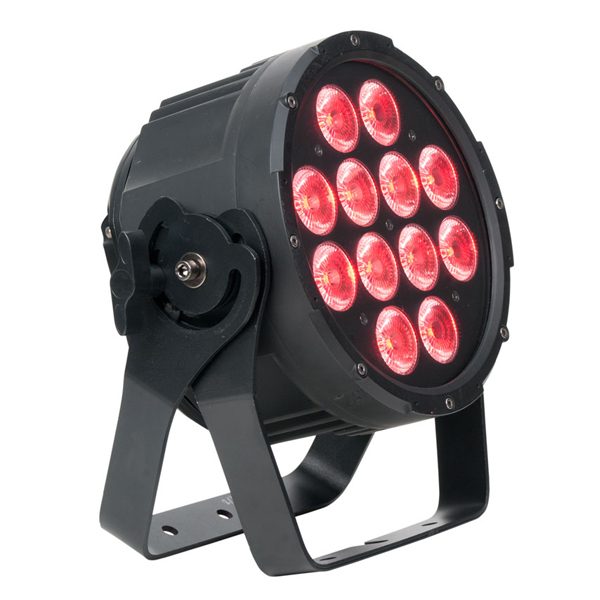

Elation SixPAR 200IP (16A IP65)Elation SixPAR 200IP (16A IP65)

Elation SixPAR 200IP (16A IP65)

Elation
SKU: WLLPARELASIX200IP Categories: , , , ,

Description

The new IP65 rated SIXPAR 200IP™ features (12) 12W 6-IN-1 RGBAW+UV LEDs, 15° beam and 25° field angles, electronic strobe and dimming (0-100%), 5 variable dimming curve modes, dual yoke / floor stand, multiple unit power linking, RDM (remote device management), rugged die-cast aluminum exterior, flicker free operation for TV and FILM, 150W max power consumption, and a multi-voltage universal auto switching power supply (110-250v).

Feature Quick View

  • IP65 Rated
  • 15° Beam 25° Field Angles
  • 5 Variable Dimming Curve Modes
  • Dual Yoke / Floor Stand
  • Multiple Unit Power Linking
  • RDM – Remote Device Management
  • Rugged Die-Cast Aluminum Exterior
  • Flicker Free Operation for TV and FILM



Video

Elation Professional – Six Par Series (SixPar100 SixPar200 SixPar300)

Elation Professional’s new SixPar Series of indoor and outdoor PAR color changers features a revolutionary 6-color LED multi-chip that provides an expanded palette of colors, including stunning ambers, true whites and even ultraviolet. Useful for production applications or installations as a wash light, uplight, wall wash, truss warmer and more, the SixPar’s high-power single lens RGBWA+UV LEDs provide a creative color boost to the lighting designer toolbox.

Additional information

Weight 5.7 kg
Source

(12) 12W 6-in-1 RGBAW+UV LEDs
100,000 Hour Average LED Life

Photometric Data

22,250 LUX 2.067 FC @3.3’ (1m) (15° Full ON)

Effects

Electronic Strobe
Color and Chase Macros
Electronic Dimming: 0% – 100%
5 Variable Dimming Curve Modes

Control/Connections

(4) DMX Channel Modes (6 / 7 / 8 / 12)
(4) Button Touch Control Panel
LCD Menu Display
IP DMX In/Out
IP Power In/Out
With Wired Digital Communication Network

Size

Length: 12.3” (313mm)
Width: 6.2” (157mm)
Vertical Height: 11.8” (300mm)

Electrical/Thermal

AC 110-250V – 50/60Hz
150W Max Power Consumption
Multiple Unit Power Linking
5°F to 113°F (-15°C to 45°C)
UV Wavelength: 395nm

Approval

CE, cETLus, IP65

Downloads

Data Sheet Download
Manual Download
