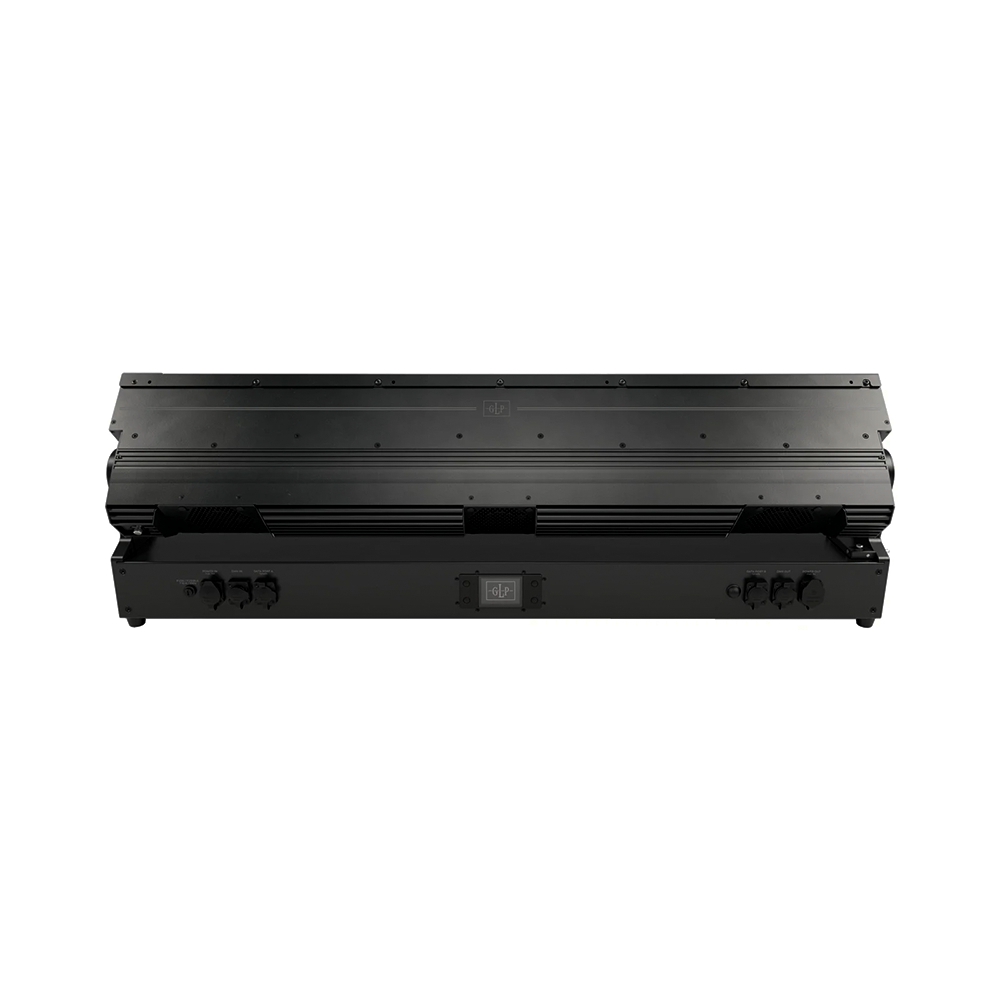

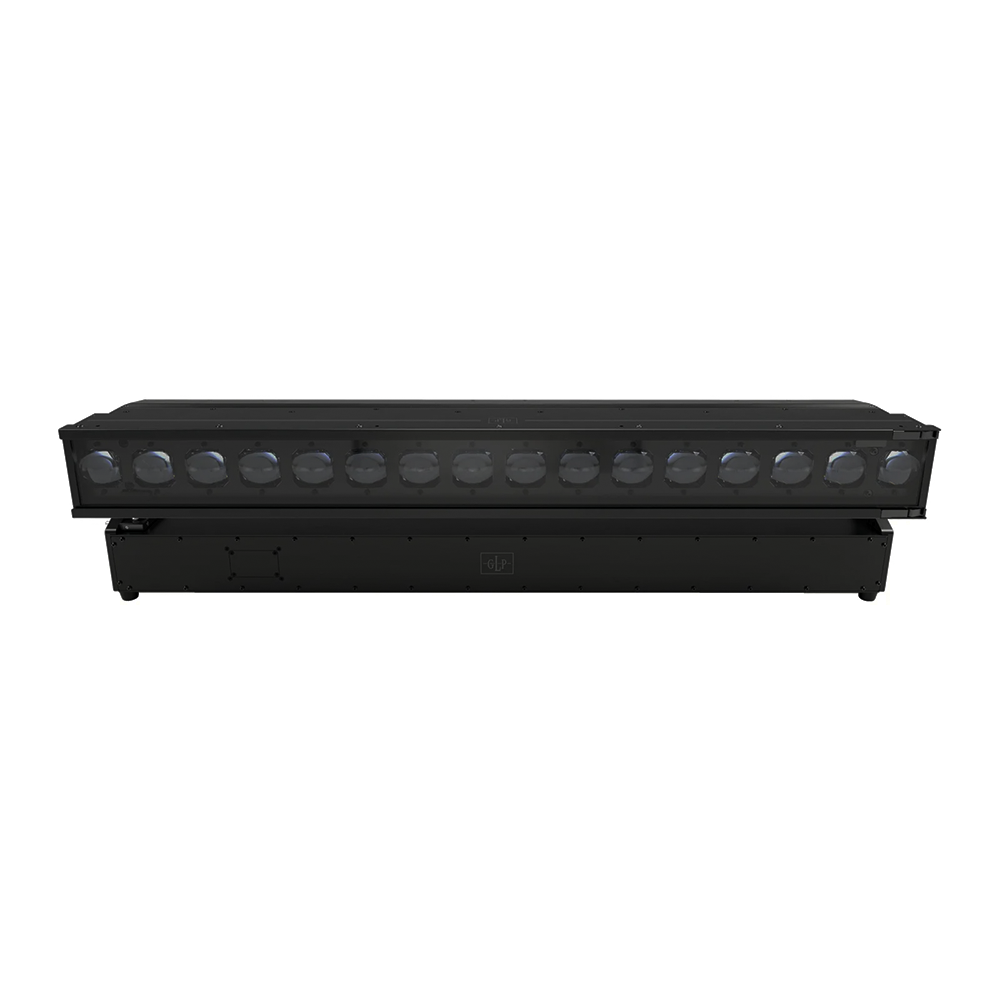

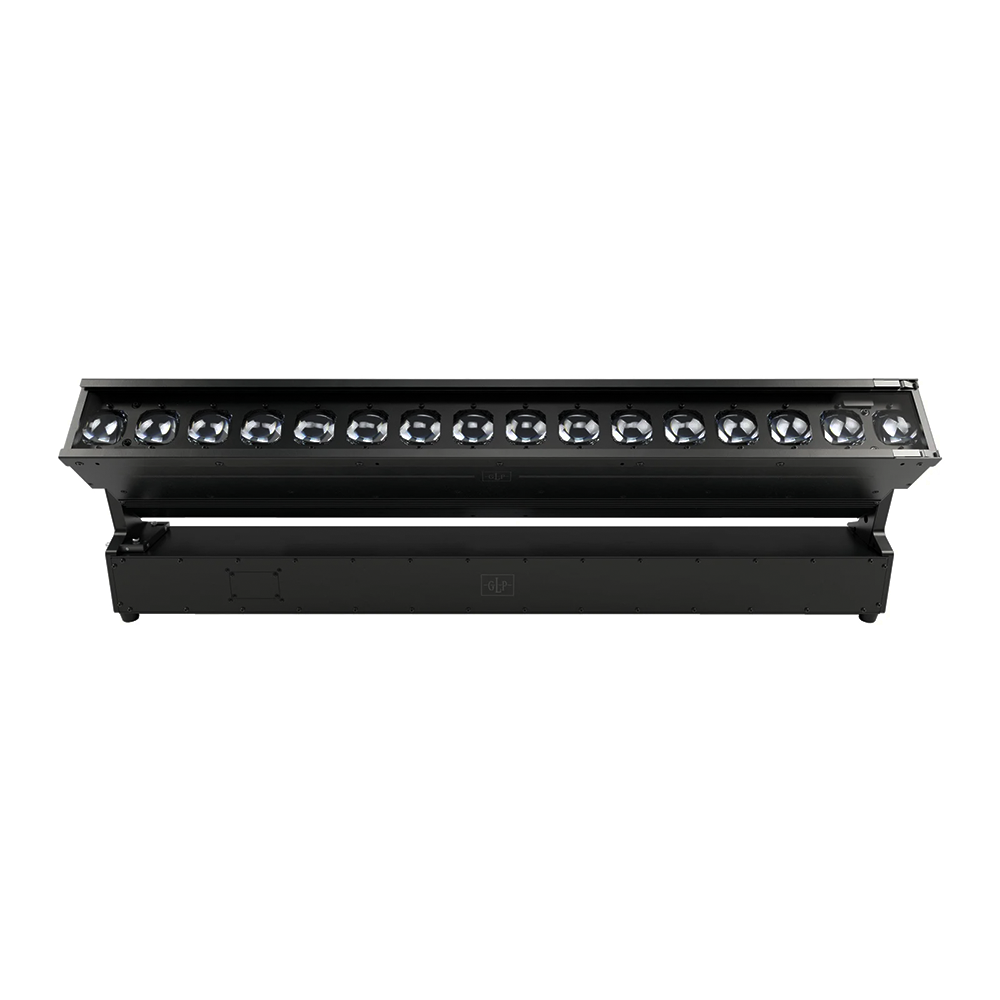

GLP – WildBar 16

GLP

Equipped with 16 powerful 40‑watt RGBL LEDs, the WildBar 16 delivers an impressive light output of 10,300 lumens. Its motorised 200° tilt and variable zoom from 4° to 44° allow for an exceptional range of lighting effects, from sharp beams to broad washes.

Description

With the WildBar 16, GLP presents a powerful and versatile LED tilt bar designed for use in demanding environments and outdoor events. As a leading manufacturer of innovative lighting technology with decades of experience in moving LED bars, GLP sets new standards in performance, flexibility, and efficiency with the WildBar 16.

Equipped with 16 powerful 40-watt RGBL LEDs, the WildBar 16 delivers an impressive light output of 10,300 lumens. Its motorised 200° tilt and variable zoom from 4° to 44° allow for an exceptional range of lighting effects – from sharp beams to broad washes.

Thanks to its IP65 certification, the WildBar 16 withstands rain, dust, and dirt, making it perfect for festivals, open-air concerts, and other demanding environments. Despite its robust construction, it remains surprisingly lightweight at just 23 kg / 50.5 lbs, ensuring easy handling.

For maximum control flexibility, the WildBar 16 supports DMX, RDM, ArtNet, sACN, and the GLP iQ.Mesh system, offering multi-patch functionality for precise media server pixel control. Its optimised design makes it a cost-effective solution for demanding lighting designers without compromising on quality and performance.

Features

IP65 Rated – a real all-weather device

The perfect motorised batten for festivals and other outdoor events. With a robust IP65 metal construction, the fixture can be used in any weather. Handling harsh conditions, confetti, pyrotechnic particles, and mud with no problem.

Compact, lightweight, and cost-effective – with full performance

Its compact housing design focuses on retaining high performance, while software features allow for reduced size and weight.

10,300 lm light output and 561 kcd Peak sufficient brightness for all application

The WildBar 16 is a true rock’n’roll hero, optimised for use as show lighting. Its internal colour mixing algorithm and resulting spectrum are engineered for maximum output. This gives the WildBar 16 excellent efficiency, with a total lumen output of up to 10,300 lm.

Motorized 1:12 zoom from very parallel 4° curtain beam to uniform 44° wash illumination

Patented similar Pixel Pitch between multiple fixtures for endless LED Bars and Pixel Matrices
Placed side by side, the identical pixel pitch between each unit ensures a consistent pixel matrix. This allows unlimited LED pixel lines to be created, with patterns and effects reproduced homogeneously across the entire line.

GLP iQ.Gamut Color Technology included – for impressive white, saturated and pastel colors

The extended colour space of the iQ.Gamut algorithm offers good pastel colours in addition to highly saturated primary colours. This includes features such as ColorMix Modes, realistic tungsten emulation and perfect colour matches. These enhanced features of the iQ.Gamut algorithm provide even more precise control over the lighting.

Excellent White Light and Color Rendering

The iQ.Gamut algorithm offers a precisely reproduced white point as default, focusing on maximum brightness. Using the CTC channel, this value can be individually and precisely shifted exactly along the black body line.

Smart and Easy Control Modes

2 simple and structured control modes enable quick understanding and easy patching without reading a user manual. The DMX Channels are built on each other, so that re-patching is possible without any problems. That makes fixture patching easy and saves time and nerves – especially when things must be done quickly.

Additional information

Light Source

Type: RGBL LED
Power: 16x 40 W
Light Source Lifetime: 50,000 h
LED Refresh Rate: 4 selectable PWM Modes

Optical System

Total Output: 10,300 lm
Peak Luminous Intensity: 561 kcd
min. Zoom: 4°
max. Zoom: 44°
Zoom Ratio: 0.05

Dynamic Effects

Color Mixing: RGBL
Dimmer / Shutter: 0 – 100%, 16 bit

Control & Programming

DMX Channels: 28, 79
Control Modes: 2
Protocols: DMX (USITT DMX512-A), RDM (ANSI/ESTA E1.20), Art-Net, sACN, GLP iQ.Mesh
High-Res Channels: Dimmer, Tilt
Dimming Curves: linear, soft, S-Curve
Performance Modes: Fast, Normal (Balanced), Smooth
Fan Modes: regulated, high, medium, low
PWM: Low, Optimal, High 1, High 2
Setting and Addressing: backlit graphic LCD, 4 Button Menu Navigation, DMX, RDM, 1 Scene Stand Alone
Other Control Options: Pattern-FX-Engine
Software Update: DMX Link via Dprog, GLP iQ.Mesh, GLP iQ.Tool

Connections

Power Connection: Neutrik powerCON TRUE1 In/Out
Signal Connection: Neutrik XLR 5-Pin In, Neutrik etherCON In/Out (failsafe)

Construction

Housing Color: Black
Housing Material: high-impact flame-retardand thermoplastic, aluminum, steel metal plates
Protection Rating: IP65
Construction Features: Tilt-Lock-System, Alignment System, optional: Frontfilter Adapter

Electrical Specifications

Power Input: 100 – 240 VAC / 50 – 60 Hz
Power Supply Unit: auto-ranging electronic switch-mode
max. Power (@ 230 V): 700 W

Installation

Mounting: 4 pairs of 1/4-turn locks, eyelets for safety cable
Orientation: any
Location: indoor, outdoor
min. Distance to Combustible Materials: 0.1 m
min. Distance to Illuminated Surfaces: 1.0 m

Movement

Tilt: 200°, 16 bit

Shipping

Single Fixture: carton, DRX Sleeve/s (included)
Tourpack: 3-way

Thermal Specifications

Cooling: combined convection and forced air
min. Ambient Temperature: -10 °C / 14 °F
max. Ambient Temperature: 45 °C / 113 °F

Dimensions & Weight

Height (without rubber feet): 306 mm / 12 in
Height (with rubber feet): 321 mm / 13.3 in
Width (across yoke): 1,000 mm / 40 in
Depth: 112.7 mm / 4.5 in
Weight (netto): 23 kg / 50.5 lbs
