Martin Aura XB LEDMartin Aura XB LED

Martin – Mac Aura XB

Martin

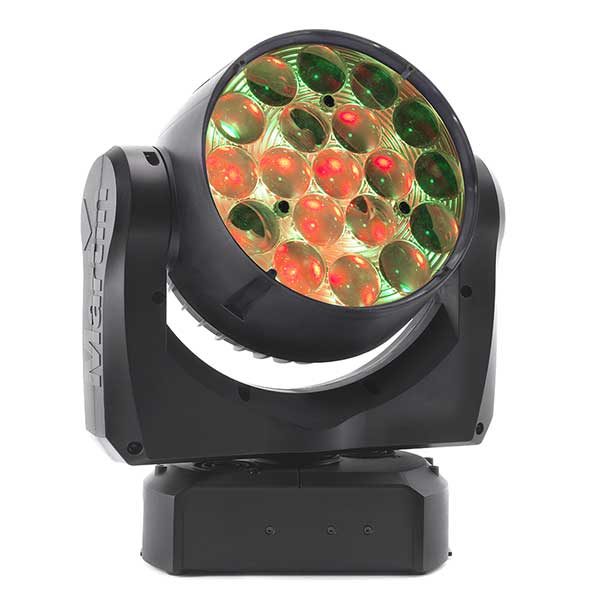

The MAC Aura XB takes an award-winning, innovative, compact LED wash light to the next level, incorporating many new features first introduced with the MAC Quantum Wash™.

SKU: MLEMVHLEDAUXB Categories: , , , ,

Description

The MAC Aura XB takes an award-winning, innovative, compact LED wash light to the next level, incorporating many new features first introduced with the MAC Quantum Wash™. Not only does the MAC Aura XB offer additional brightness, it also features a new superior color mixing system and an optimized lens design for tighter beams and more even washes. Martin’s unique and patented Eye-candy Aura Effect™ is also part of the package.

Feature Quick View

  • Super bright single lens wash with fully premixed color
  • Compact design and low weight
  • High efficiency, low power consumption, long service life
  • Super-bright single-lens wash with fully premixed color
  • Broad color palette, RGBW color mixing
  • Eye-candy Aura Effect™
  • Uniform shades
  • Built-in FX engine
  • 10 to 60° uniform zoom
  • 6000 Lumens output
  • Rapid movement
  • Compact, low weight design (6.5 kg)
  • High efficiency, low power consumption, long lifetime

Video

Additional information

Weight 6.5 kg
Dimensions 30 × 36 × 360 cm
Beam color mixing

RGBW

Aura (secondary lens array illumination) color mixing

RGB

Beam color temperature control

CTO, variable 10,000 – 2500 K

Beam and aura electronic 'colour wheel' effect

33 LEE-referenced colours plus white, variable-speed color-wheel rotation effect and random colour

Beam and aura independent shutter effects

Electronic, with regular and random pulse, burst and strobe effects

Pre-programmed effects

Range of synchronized and independent beam and aura FX, different FX can be combined
Electronic dimming: Independent beam and aura, four dimming
curve options
Pan: 540°
Tilt: 232°

Pan and tilt speed

Adjustable via onboard control panel and DMX

Control systems

DMX, RDM

Control options

Independent or synchronized Beam and Aura control

Control resolution

8-bit, with 16-bit control of pan & tilt

Setting and addressing

Control panel with backlit graphic display

DMX channels

14/25

DMX compliance

USITT DMX512-A

RDM compliance

ANSI/ESTA E1.20

Transceiver

RS-485

Firmware update

Via DMX with Martin™ USB Duo DMX Interface Box

Light Source

19x 15W RGBW LED Array System

Downloads

User Manual Download
Data Sheet Download
