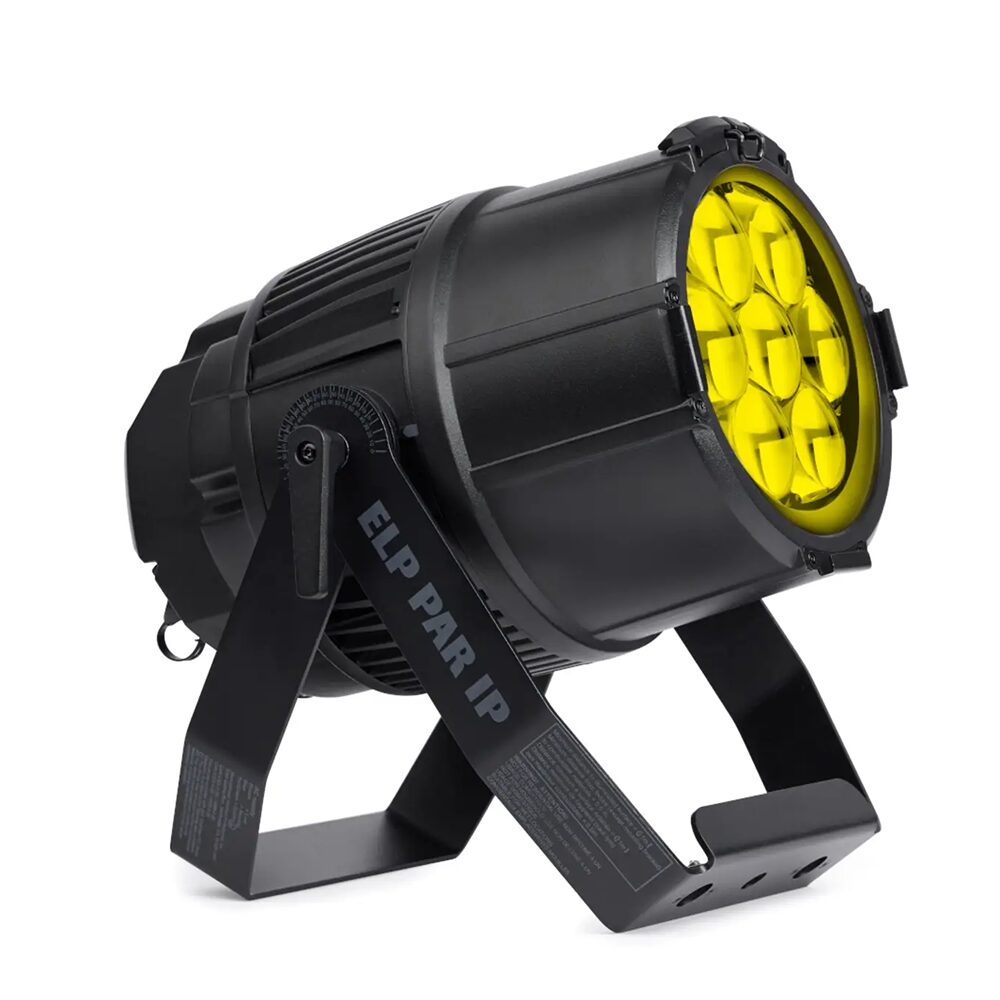

Martin – ELP PAR IP

Martin

Fast & Easy to install, quick-focus IP65 RGBW PAR, that boasts a wide zoom range supporting both stage illumination and tight mid-air beam effects.

Categories: , , , , ,

Description

The Martin ELP PAR IP static LED fixture sets a new standard in the static wash category, with unprecedented lumen output, high-intensity narrow zoom, full-gamut color calibration and smart rigging and control features. This fixture is ideal for indoor or outdoor applications with an IP65 rating for protection against dust and water ingress.

The ELP PAR IP makes installation faster and easier, thanks to a quick-focus system and bright angle of projection indicators. Other performance enhancements include a wide zoom range that supports both stage illumination and tight mid-air beam effects, an advanced color-calibration system that delivers accurate color reproduction and precise color temperature control, an extended color mode and a CTC channel that can modify the color space.

Whether lighting an outdoor or indoor theatre production, festival, exhibition or corporate event, fill the stage with color and create stunning beam effects with this versatile LED fixture that sets a new performance benchmark in its class.

Features

  • Light engine: 7 x 40W RGBW
  • Full-gamut color-calibration system
  • CTC control: 1,800–12,850 K
  • Quick Focus mode allows installation and focusing without the need for a console operator
  • Clear of projection indicators allow quick installation
  • Angled power and data connections support a clean cable run that does not impede the fixture or installation
  • Included truss and floor-mounting yoke with omega bracket connectivity
  • Lumen output: 3,350
  • Zoom: 5.5–50˚
  • Intensity: 329,058 cd
  • IP65 rating
  • Dimensions: 315 x 285 x 498 mm (12.4 x 11.3 x 15.7 in) (inc. bracket)
  • Weight: 9.1 kg (20 lbs)

Video

Martin ELP PAR & ELP PAR IP(w/ IP65 Outdoor Protection) Static RGBW Wash Fixtures: Product Overview

Martin ELP PAR & ELP PAR IP(w/ IP65 Outdoor Protection) Static RGBW Wash Fixtures: Product Overview

Additional information

Physical

Length: 315 mm (12.4 in.)
Width: 285 mm (11.3 in.)
Height: 398 mm (15.7 in.) with bracket
Weight: 9.1 kg (20.1 lbs.)
Dynamic Effects

Color mixing: RGBW
Color presets: 48 color presets, virtual color wheel effects
Zoom: Motorized
Electronic dimming: 0 – 100%, four dimming curve options
Strobe and pulse effects: Variable speed and action, random strobe
Electronic shutter effect: Instant open and blackout
Color temperature: Variable 1,800 – 12,850 K
Control and Programming

Control options: DMX, RDM
16-bit fine control: Dimming, RGB, Zoom
LED color management modes: Raw, extended and calibrated
DMX address setting: Control panel with OLED display
DMX channels: 14
DMX compliance: USITT DMX512-A
RDM compliance: ANSI/ESTA E1.20
Optics

Light source: 7 x 40 W RGBW Osram LEDs
Minimum LED lifetime: 50 000 hours (to >70% luminous output)*
Beam angle (half-peak): 4.4 – 33.3°
Field angle (one-tenth peak): 5.5 – 50.0°
Binning: Tight color and flux binning
Calibration: Full Gamut and Color Calibration
Maximum output: 3,350 lumens
*Figure obtained under manufacturer´s test conditions
Photometric Data

Wide beam: 3,350 lumens
Narrow beam: 1,626 lumens
Fixture Center Intensity Narrow Beam: 329,058 cd
Fixture Center Intensity Wide beam: 10,141 cd
CRI (Color Rendering Index) : >70
CQS (Color Quality Scale): 84
TM-30 Rf (IES TM-30-15 Fidelity Index): 79
TM-30 Rg (IES TM-30-15 Gamut Index): 116
TLCI (Television Lighting Consistency Index): 61
CCT: 6,500 K
LED refresh rate – Standard Mode: 3,600 Hz
LED refresh rate – Theatre Mode: 19,200 Hz
*All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient
Construction

Housing: Aluminum and composite
Filter mount: 191 x 191 mm (7.5 x 7.5 in.)
Color: Black
Ingress protection rating: IP65
Installation

Mounting points: Adjustable bracket, surface or truss mount (fits Martin Omega Bracket)
Location: Wet locations, temporary outdoor use, not for household use
Orientation: Any
Minimum distance to combustible materials: 0.5 m (1.7 ft.)
Minimum distance to illuminated surfaces: 1 m (3.3 ft.)
Minimum clearance around fan and air vents: 0.5 m (1.7 ft.)

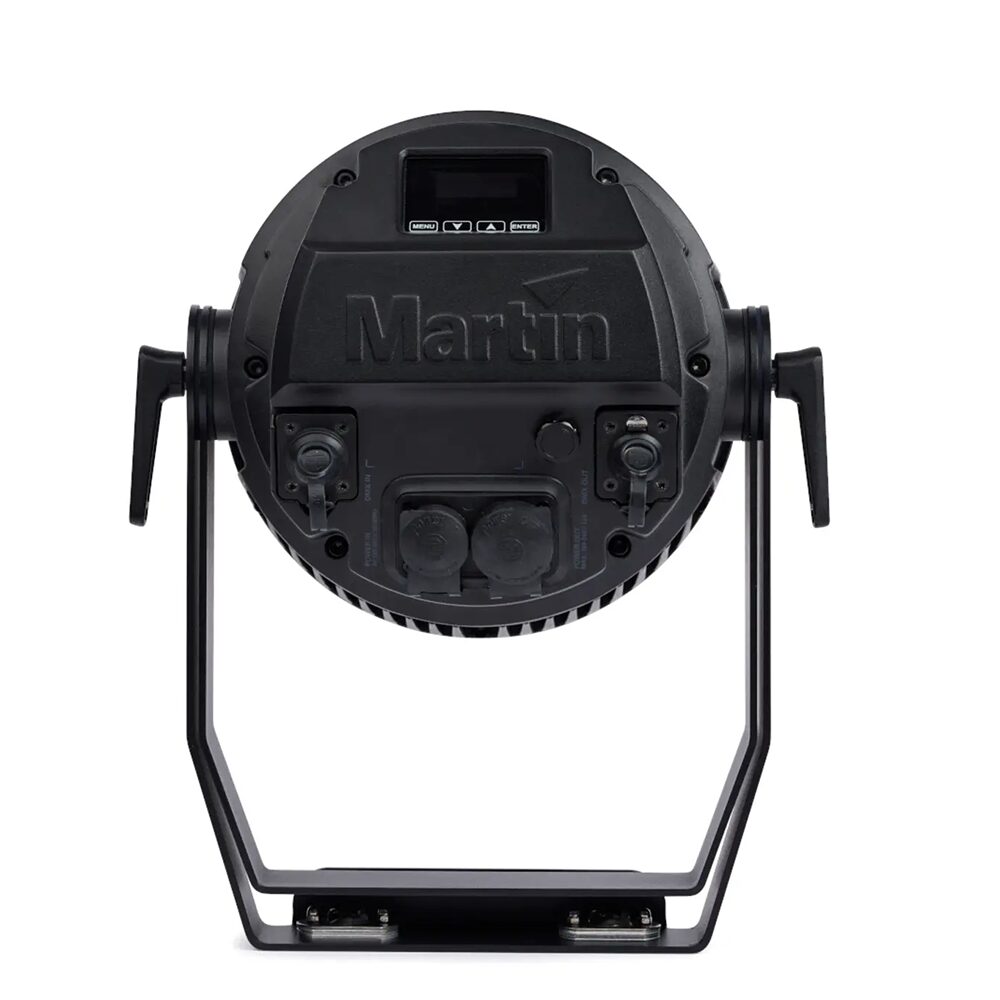

Connections

AC power in, thru: Neutrik PowerCON TRUE1 TOP
DMX data in, thru: Neutrik IP-rated 5-pin locking XLR
Electrical

AC power: 100-240 V AC nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch mode
Typical half-cycle RMS inrush current at 230 V, 50 Hz: 11.2 A
Power Factor: 0.99 @ 100 V / 120 V , 0.94 @ 220 V / 230 V / 240 V
Typical current draw: 3.7 A @ 100 V / 120 V , 1.7 A @ 220 V / 230 V / 240 V *

Power Consumption
Typical: 300 W *
Hibernation: 2 W *
* Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
Typical: full output white, no effects moving, regulated fan speed.
Hibernation: no output, motors de-energized, fans stopped, wake-up procedure to re-use fixture.
Thermal

Cooling: Forced air (temperature regulated, low noise)
Total heat dissipation*: 1126 BTU/hr.
*Calculated, +/- 10%, at full intensity, full white
Maximum surface temperature: 71° C (160° F)
Maximum ambient temperature (Ta max.): 40° C (104° F)
Minimum ambient temperature (Ta min.): -10°C (14° F)
Acoustic Data

Sound Pressure Level (LpA) @ 1 m (default regulated fan mode, full output): 40.9 dB(A)
Sound Pressure Level (LpA) @ 1 m (constant fan mode ultra low): 37.9 dB(A)
Environmental

RoHS: Compliant
REACH: Compliant
WEEE: Compliant
Proposition 65: Compliant
Efficacy (max output): 14.3 lm/W
LWR*: 385 lm/kg (174 lm/lb)
LWR = Lumen-to-Weight Ratio
Approvals

Global CB Certification/IECEE: IEC 60598-2-17 (IEC 60598-1)
EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
EU EMC: EN 55015, EN 55032, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61547
US safety: UL 1573
US EMC: FCC Part 15 Class B
Canadian safety: CSA C22.2 No. 166
Canadian EMC: ICES-003 Class B, ICES-005 Class B
Australia/NZ: RCM
United Kingdom: UKCA
