Martin – MAC Encore Wash CLD

Martin

6000K crisp, neutral daylight, doubles as a modern replacement for generic fixtures like HMI based Fresnel fixtures, with the benefit of colour mixing and movement

SKU: MLEMVHMCENWSCLD Categories: , , , ,

Description

Designed to produce rich colour and premium white light in a wide variety of applications where light quality is critical, the MAC Encore™ Wash CLD is an LED-based alternative to the MAC Viper Wash DX. The feature-packed soft edge moving head offers unparalleled 6000 K crisp, neutral daylight, and doubles as a modern replacement for generic fixtures like HMI based Fresnel fixtures, with the additional benefit of colour mixing and movement.

Features

  • Pure white LED engine with 6000 K CCT.
  • No colour temperature variation during zoom and dimming.
  • Flicker-free operation—LED driver frequency suitable for all camera applications.
  • Whisper-silent—Combines convection and forced air cooling with user-selectable output vs. sound level control.
  • Fully electronic dimmer/shutter control with various dimming curves and tungsten red-shift emulation.
  • Vibrant CMY colour mixing with a superior palette of colours ranging from rich, saturated primary colours to light and smooth pastel shades.
  • Variable CTO—daylight to tungsten CCT control and expansion of the CMY palette that stays true to the black body curve.
  • Colour wheel—6 interchangeable dichroic filters + open.

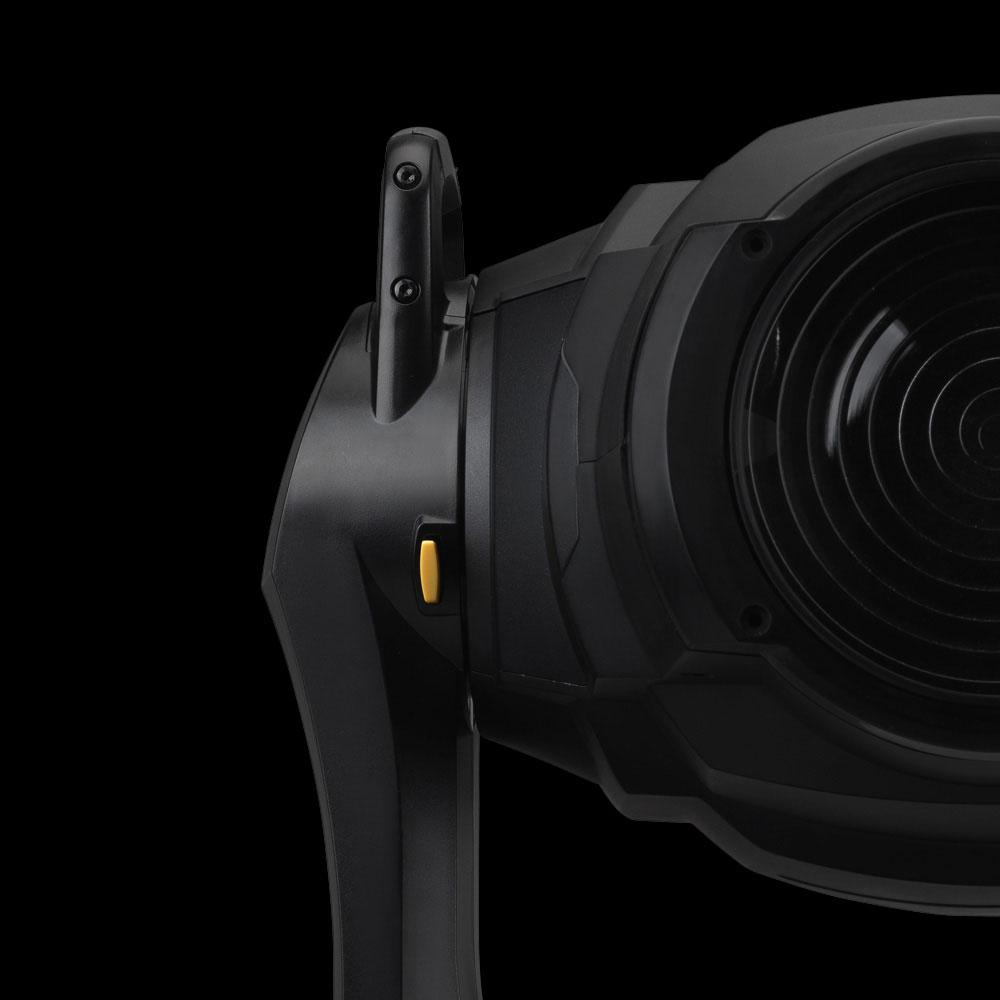

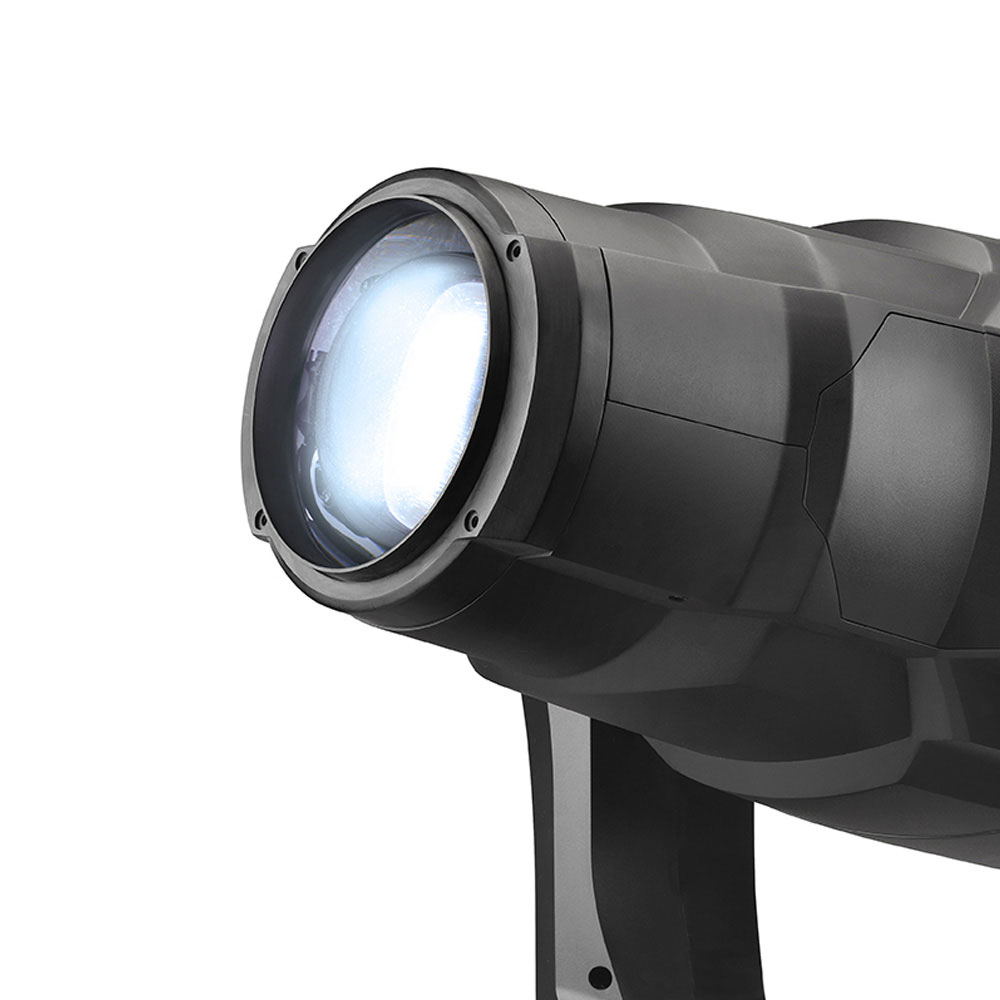

  • Fresnel lens: 1:4 zoom—precise, silent and fast zoom.
  • PC lens (optional): 1:5 zoom—precise, silent and fast zoom.
  • Internal barndoor system with two shutter blades and iris. Shutter blades can overlap for full blackout and the entire system rotates +/- 100°. Repeats cues with great precision.
  • Precise and tight iris with adjustable dynamic effects.
  • Animotion™ FX System—Internal dimming effect macros for stunning 3D mid-air and projection effects.
  • Pure white LED engine with 6000 K CCT.
  • No colour temperature variation during zoom and dimming.
  • Flicker-free operation—LED driver frequency suitable for all camera applications.
  • Whisper-silent—Combines convection and forced air cooling with user-selectable output vs. sound level control.
  • Fully electronic dimmer/shutter control with various dimming curves and tungsten red-shift emulation.
  • Vibrant CMY colour mixing with a superior palette of colours ranging from rich, saturated primary colours to light and smooth pastel shades.
  • Variable CTO—daylight to tungsten CCT control and expansion of the CMY palette that stays true to the black body curve.
  • Colour wheel—6 interchangeable dichroic filters + open.
  • Fresnel lens: 1:4 zoom—precise, silent and fast zoom.
  • PC lens (optional): 1:5 zoom—precise, silent and fast zoom.
  • Internal barndoor system with two shutter blades and iris. Shutter blades can overlap for full blackout and the entire system rotates +/- 100°. Repeats cues with great precision.
  • Precise and tight iris with adjustable dynamic effects.
  • Animotion™ FX System—Internal dimming effect macros for stunning 3D mid-air and projection effects.
  • Super precise and silent pan/tilt movement and positioning due to 3-phase stepper motor technology and absolute position monitoring.

Video

Martin MAC Encore Performance Product Demo

Drill into the nitty gritty details of the MAC Encore Performance. Martin by HARMAN Stage Lighting Product Manager, Markus Klüsener, gives you an exhaustive rundown of the new, whisper-silent benchmark in performance lighting.

Additional information

Physical

Length: 452 mm (17.8 in.)
Width: 480 mm (18.9 in.) across yoke
Height:
755 mm (29.8 in.) maximum
745 mm (29.4 in.) head straight up

Weight: 28.5 kg (62.9 lb.)
Minimum center-to-center distance in side-by-side installation: 730 mm (28.8 in.)
Dynamic Effects

Pre-programmed effects: Two ranges of FX, independent or synchronized/combined
Color mixing: CMY, independently variable 0 – 100%
Color wheel: 6 x interchangeable dichroic filters + open, indexing, continuous rotation, random color
Iris: Variable 0 – 100%
Barn doors: Internal, two blades with individually controllable insertion, +/- 100° module rotation
Dimmer/shutter: 0 – 100% continuous dimming, regular and random strobe and pulse effects, instant open and blackout
Color temperature control: Variable 6000 – 2700 K
Dimming options: Choice of four dimming curves
Zoom: Motorized
Pan: 540°
Tilt: 268°
Position correction system: Absolute position monitoring
Focus: Range varies with zoom angle, from approx. 2 m (6.6 ft.) / 6 m (19.7 ft.) to infinity
Control And Programming

DMX channels: 24
16-bit control: Dimming, pan and tilt
Movement control options: Tracking and vector
Setting and addressing: Control panel with backlit graphic display and jog wheel or via DMX
Fixture Identification: User-settable ID number
DMX compliance: USITT DMX512-A
RDM compliance: ANSI/ESTA E1.20
Transceiver: Opto-isolated RS-485
Fixture software update: USB memory device or over DMX link
Optics

Light source: 468 W custom Martin LED engine
Minimum LED lifetime: 50,000 hours (to >80% luminous output)*
Zoom range with Fresnel lens (standard): 14° – 60° one-tenth peak (1:4)
Zoom range with PC lens (optional): 11° – 58° one-tenth peak (1:5)
*Figure obtained under manufacturer's test conditions
Photometric Data

Light engine luminous output: ≥ 39,400 lumens
Fixture luminous output with Fresnel lens (standard): 11,000 lumens
Fixture luminous output with PC lens (optional): 12,000 lumens
CRI (Color Rendering Index) : >80
CQS (Color Quality Scale): >80
TM-30 Rf (IES TM-30-15 Fidelity Index): >80
TM-30 Rg (IES TM-30-15 Gamut Index): >96
TLCI (Television Lighting Consistency Index): >70
CCT: 6000 K (+/- 250 K)
* All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.
Construction

Housing: High-impact flame-retardant thermoplastic
Color: Black
Protection rating: IP20
Installation

Mounting points: 4 pairs of 1/4-turn locks
Location: Dry location only, must be fastened to surface or structure
Orientation: Any
Minimum distance to combustible materials: 0.2 m (8 in.)
Minimum distance to illuminated surfaces: 2.0 m (6.6 ft.)
Connections

AC power input: Neutrik TRUE1 socket (accepts Neutrik TRUE1 NAC3FX-W connector)
DMX and RDM data in/out: 5-pin locking XLR
Electrical

AC power: 120-240 V AC nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch mode
Typical half-cycle RMS inrush current at 230 V, 50 Hz: 10.3 A
Power Factor: 0.99 @ 120 V / 208 V , 0.98 @ 230 V / 240 V
Typical current draw: 5.0 A @ 120 V , 2.9 A @ 208 V , 2.6 A @ 230 V , 2.2 A @ 240 V *
Power Consumption
Typical: 596 W *
Idle: 64 W *
* Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
Typical: full output white, no effects moving, regulated fan speed.
Idle: no output, no effects moving, regulated fan speed.
Thermal

Cooling: Combined convection and forced air (temperature-regulated, low noise, user-definable levels)
Maximum ambient temperature (Ta max.): 40° C (104° F)
Minimum ambient temperature (Ta min.): 5° C (41° F)
Maximum surface temperature, steady state, at 40° C ambient: 75° C (167° F)
Total heat dissipation (calculated, +/- 10%): 2000 BTU/hr.
Environmental

RoHS: Compliant
REACH: Compliant
WEEE: Compliant
Proposition 65: Compliant
Efficacy (max output): 17 lm/w
LWR*: 386 lm/kg (175 lm/lb)
LWR = Lumen-to-Weight Ratio
Approvals

EU safety: EN 60598-2-17, EN 62471, EN62493
EU EMC: EN 55015, EN 55032, EN 55103-2, EN 61000-3-2, EN 61000-3-11, EN 61547
US safety: UL 1573
US EMC: FCC Part 15 Class A
Canadian safety: CSA C22.2 No. E598-2-17
Canadian EMC: ICES-003 Class A
Australia/NZ: RCM
