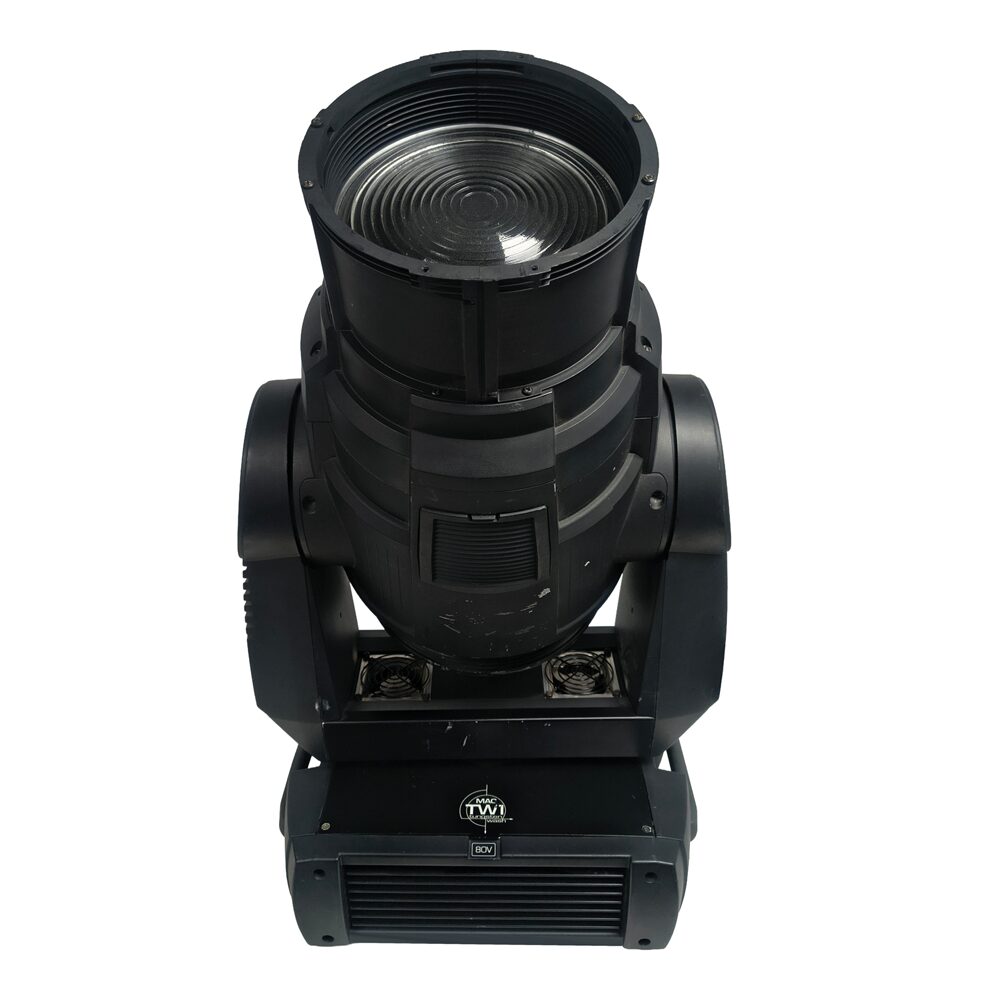

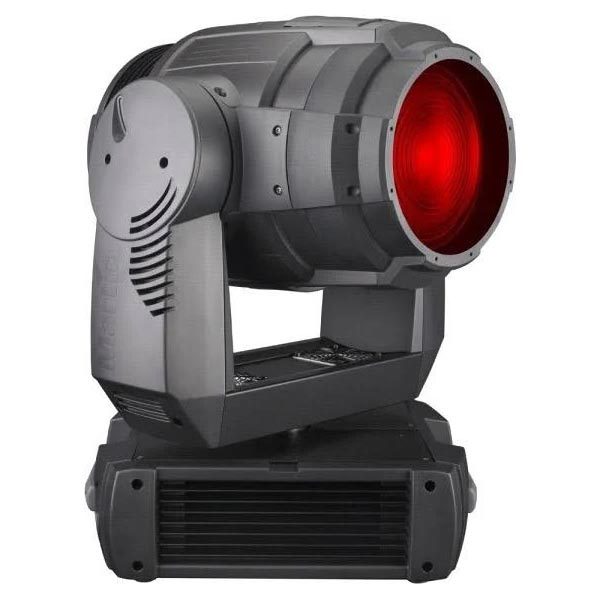

Martin – Mac TW1 80V Tungsten Washlight

Martin

The MAC TW1 is a powerful, silent tungsten wash light with a clean, even, soft-edged beam, a motorized zoom, exceptional and rich CMY color mixing and can be run from the built-in dimmer or from an external dimmer.

Now For Sale

This ex-hire fixture, along with other well‑maintained event and theatrical equipment, is now available for sale.

To find out more, visit our Ex‑Hires page and register your interest in used equipment.


Ex-Hire Sales


If you’d still Like to Hire this fixture, use the options below.

SKU: MLEMVHMCTW180V Categories: , , , ,

Description

The MAC TW1 is a powerful, silent tungsten wash light with a clean, even, soft-edged beam, a motorized zoom, exceptional and rich CMY color mixing and can be run from the built-in dimmer or from an external dimmer.

Features Quick View



  • Total output up to 14200 lumens
  • CMY color mixing system
  • Rapid stobe effects (up to 10 Hz)
  • Motorized zoom
  • Fresnel (included), narrow, and multi array
  • Internal & external electronic dimming plus mechanical dimming
  • 80 V dimmer for universal operating voltage
  • Patented very low-noise cooling
  • Various front accessories for theatre, television and film applications

Additional information

Weight 28 kg
Physical

Length: 454 mm
Width: 362 mm
Height: 709 mm, head straight up
Dynamic Effects

Color mixing: CMY, independently variable 0 – 100%
Electronic dimming: Multi-voltage IGBT and 80 V internal dimmer options, 'plug and play' external dimming
Mechanical dimmer: 0 – 100%
Shutter: Strobe effect up to 10 Hz, random strobe
Zoom: Narrow 14.5° – 27°, Standard 20° – 41°, Very wide 97° – 105°, 1/10 peak angles, 80 V lamp
Pan: 540°
Tilt: 242°
Control and Programming

DMX channels: 14/20
Setting and addressing: Control panel with display
16-bit control: CMY, mechanical dimmer, electronic dimmer, zoom, pan & tilt
Movement control options: Tracking and vector
Dimming curve options: Various available
Protocol: USITT DMX512-A
Receiver: Opto-isolated RS-485
Firmware update: Serial upload via DMX link
Lamp

Type: 1200 W tungsten halogen
Approved lamps: Philips 1200/115, 1200/230 or 1200/240 FastFit, OSRAM Lok-It 1200W 80V/32/P50
Socket: PGJX-50
Lamp voltage must match internal or external dimmer output voltage:
Dimming System Options

Internal multi-voltage IGBT dimmer: 0 – 100%, 8- or 16-bit dimming resolution, controlled via DMX
Internal 80 V dimmer: 0 – 100%, 8- or 16-bit dimming resolution, controlled via DMX
External dimmer input: Intelligent lamp power control
Construction

Color(s): Black
Housing: Magnesium alloy, UV-resistant fiber-reinforced composite
Reflector: Glass, cold light
Protection rating: IP20
Installation

Orientation: Any
Mounting points: 2 pairs of 1/4-turn locks
Connections

AC power input: 3 m integral cable without power plug
DMX data in/out: 3-pin and 5-pin locking XLR
External dimmer: Neutrik PowerCon
Electrical

AC power: 100-120/200-240 V nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch-mode
Main fuse: 20 AT (slow blow)
Thermal

Lamp cooling: Patent-pending low noise ducted forced air system
Cooling: Filtered forced air (temperature-regulated, low noise)
Maximum ambient temperature (Ta max.): 40° C
Minimum ambient temperature (Ta min.): 0° C
Maximum surface temperature, steady state, at 40° C ambient: 200° C (392° F)
Total heat dissipation (calculated, +/- 10% at 110 V, 60 Hz / 230 V, 50 Hz): 4180 / 4160 BTU/hr.
