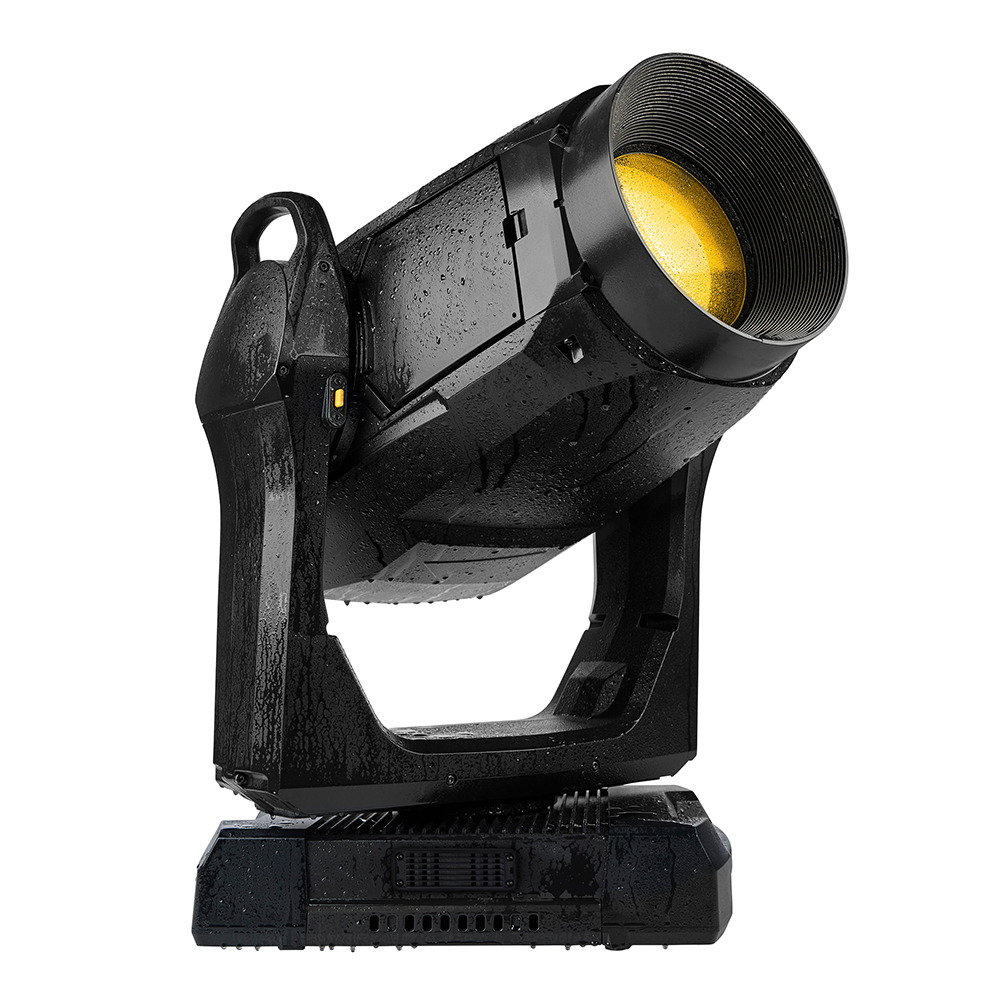

Marting – MAC Viper XIP Front right of movign head with waster dropsMarting – MAC Viper XIP Front right of movign head with waster drops

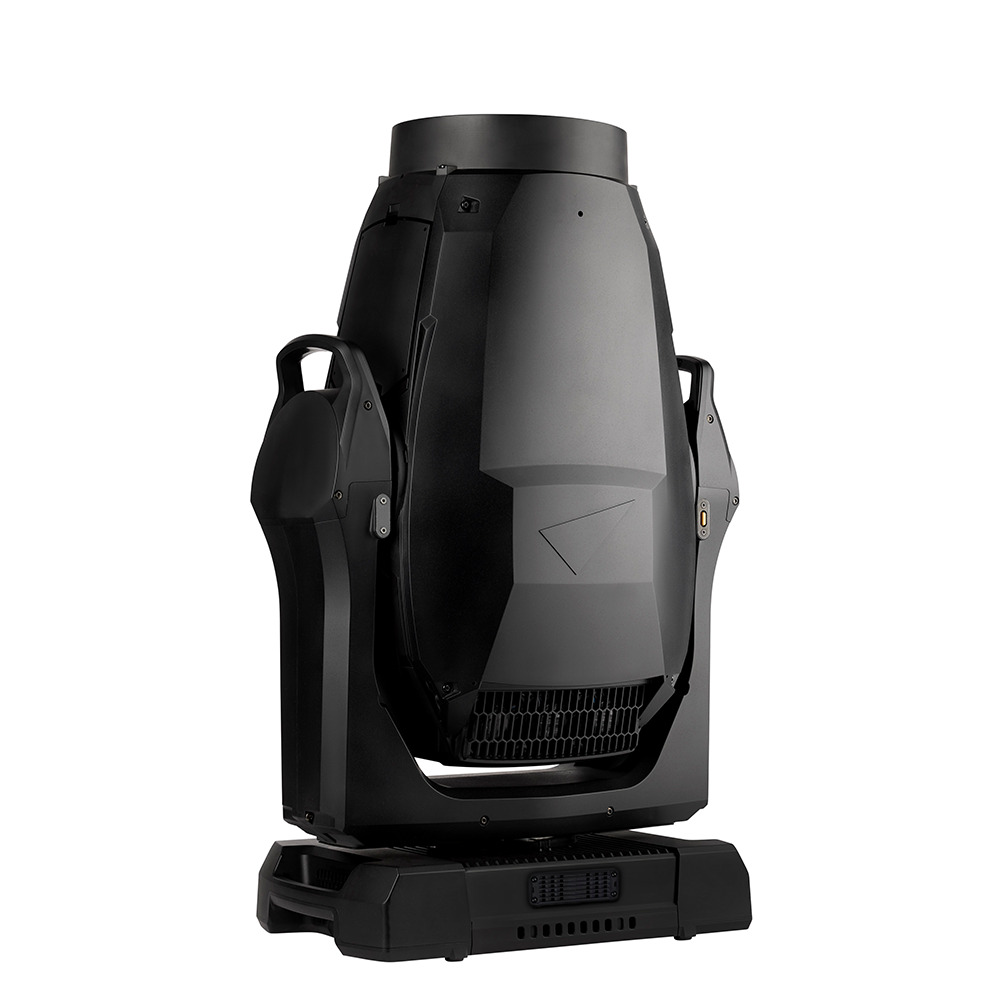

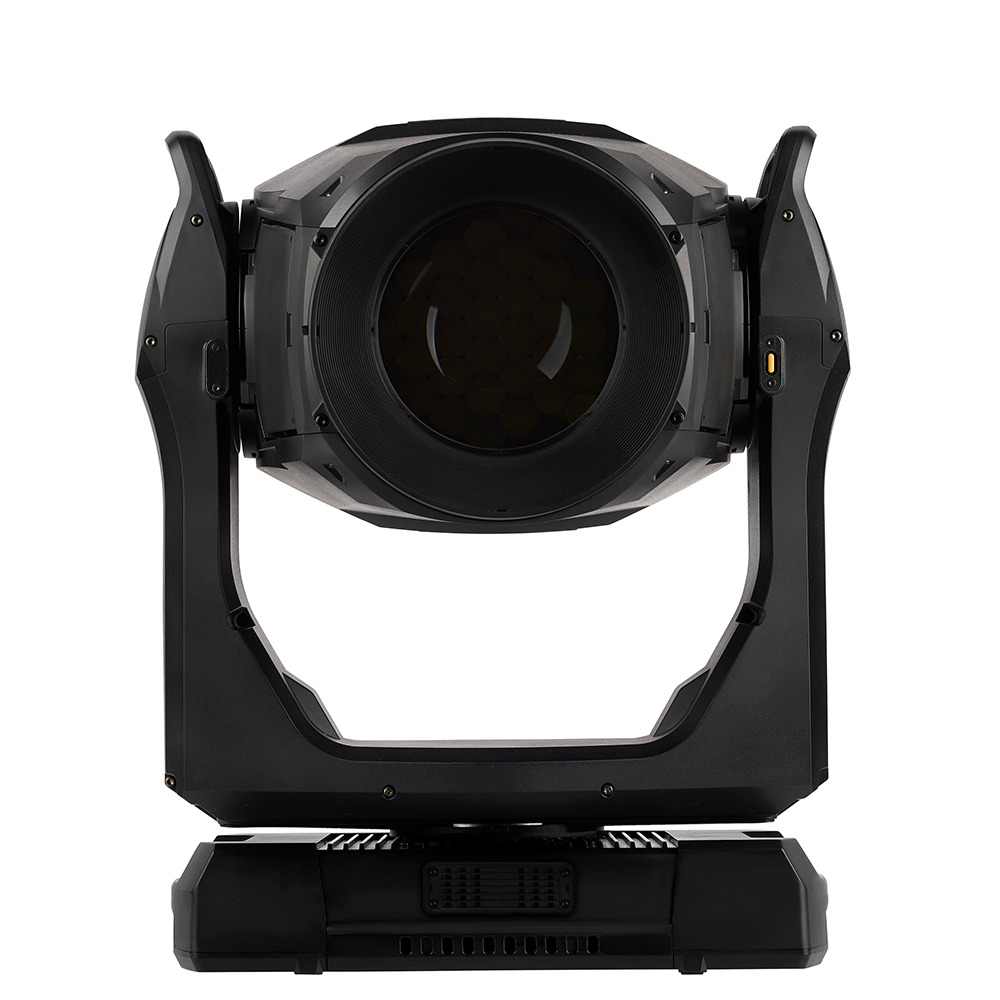

Martin – MAC Viper XIP

Martin

Legendary viper performance with XIP for temporary outdoor installations, full featured moving head with lower noise and a brighter output.

SKU: MLEMVHMCVIPERXIP Categories: , , , , , ,

Description

The Martin MAC Viper XIP next-generation, Viper-class moving head combines legendary Viper performance, Martin XIP smart weatherproofing technology, and the most robust feature set Martin has ever developed. Drawing on best-in-class features that defined the iconic Viper lineup, including Viper Profile, Performance, Wash and Wash DX, MAC Viper XIP builds on its heritage, setting a new standard for all-in-one performance, innovation and reliability.

Features

A Spot-On White Point

Embodying a quality of light that is more pleasing to the eye, the MAC Viper XIP light engine’s native 5,800K color temperature ensures a white point precisely on the black body curve, with no green or magenta shifts, only crisp, vibrant white light.

Outstanding Optics

MAC Viper XIP’s optical system features 14 precision-coated lenses and incredible center-to-edge clarity. Uniquely high-contrast levels produce razor-sharp mid-air effects & the shutter system’s enhanced depth of field ensures well-defined gobo framing.

Superior, Steady-State Output

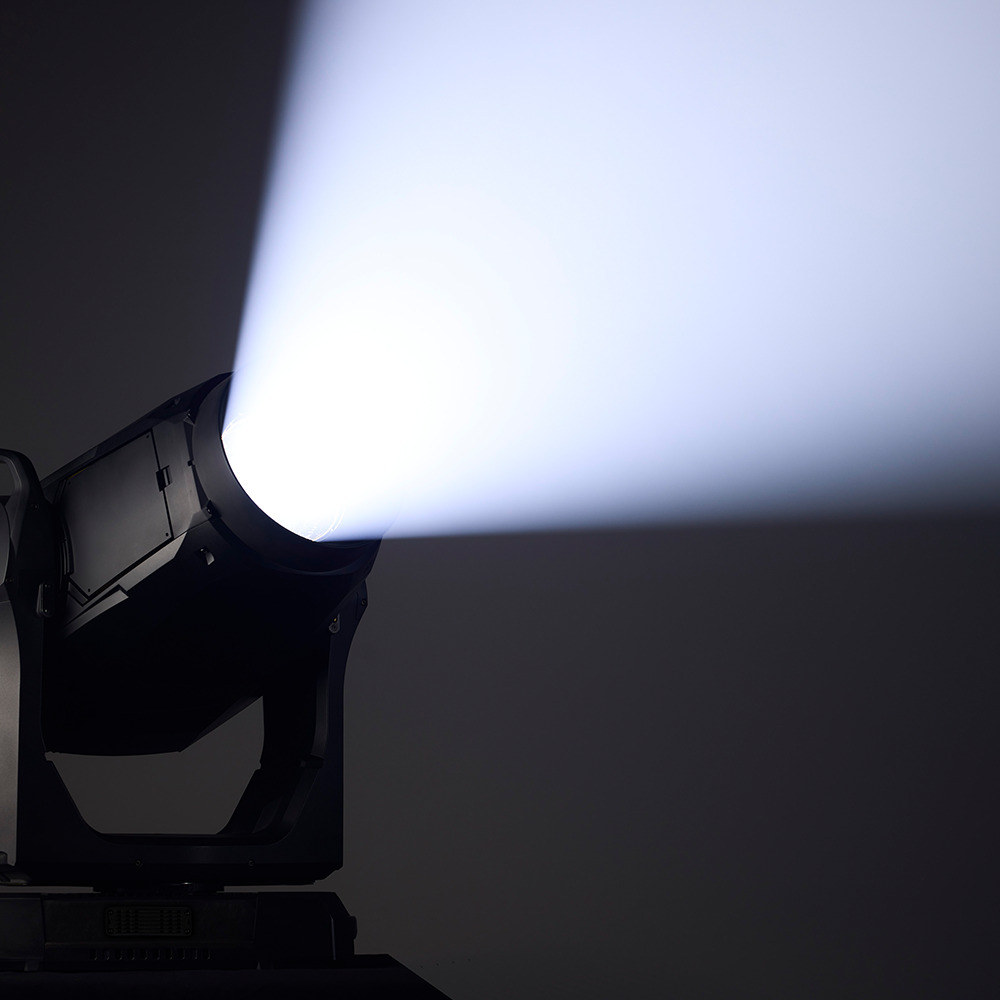

Martin’s tailor-made light engine and XIP weatherproofing allow MAC Viper XIP to deliver a consistent 28,000 lumens. Smart, efficient cooling maintains full output with colors, gobos, effects and gobo light recycling that boosts output by 25%.

Xip Unique Weatherproofing Technology For Cross-Event Utilization

Martin’s patent-pending XIP water & dust ingress protection is ideal for temporary, year-round outdoor use overcoming size, noise, output, and weight penalties, typical of IP65 fixtures. Its low-noise and low-weight are also perfect for indoor events.

Low-Noise, High-Impact

MAC Viper XIP combines Viper-class output and whisper-quiet noise, similar to Martin MAC Encore. Smart heat management maintains low LED temperatures for long life & output, making it ideal for theater, broadcast & other noise-sensitive applications.

Creative Freedom, Exceptional Performance

As Martin’s most feature-rich product ever made, MAC Viper XIP has been engineered to elevate the most demanding shows and events. Every feature has been optimized to give designers maximum creative freedom while ensuring uncompromising performance.

Video

Martin MAC Viper XIP | Product Launch Announcement

This is the captured Martin MAC Viper XIP Product Launch Announcement Livestream from March 14, 2024.

Additional information

Physical

Weight: 36.8 kg (81.1 lbs.)
Minimum center-to-center distance in side-by-side installation: 704 mm (27.7 in + Clearance)
Length (head): 594 mm (23.4 in.)
Length (base): 429 mm (16.9 in.)
Width (base): 281 mm (11.1 in.)
Width (across yoke): 479 mm (18.9 in.)
Height (head straight up): 758 mm (29.8 in.)
Height (maximum): 776 mm (30.6 in.)
Dynamic Effects

Pre-programmed effects: Two ranges of FX, independent or synchronized/combined
Color mixing: CMY, independently variable 0 – 100%
Color wheel: 5 x dichroic filters + open (incl. Spectral Enhancement Filter), indexing, continuous rotation, random color
Gobo animation: Interchangeable animation wheel, indexing, continuous rotation with variable angle, speed and direction
Iris: Variable 0 – 100%, pulse effects
Zoom: Motorized
Color temperature control: Variable 5800 – 2850 K
Framing: Rotatable framing module, +/- 83°, 4 x individually controllable full curtain blades with full variable angle (+/- 30°) through the entire insertion path from 0 – 100%
Prism: 4-facet, indexing and continuous rotation
2 x Frost: Variable 0 – 100%, Heavy and Light
Dimmer/shutter: 0 – 100% continuous dimming, regular and random strobe and pulse effects, instant open and blackout
Dimming options: Choice of four dimming curves
Pan: 540°, coarse & fine control and speed
Tilt: 268°, coarse & fine control and speed
P3: Videomapping of fixture color and/or intensity with variable crossfade between DMX control and video control
Focus: Motorized, range varies with zoom angle, from approx. 4.5 m (14.8 ft.) to infinity
Rotating gobo wheel 1: 7 x interchangeable gobos + open, indexing, continuous rotation and shake, gobo wheel continuous rotation
Rotating gobo wheel 2: 7 x interchangeable gobos + open, indexing, continuous rotation and shake, gobo wheel continuous rotation
Gobo Color Temperature Correction: Automatic
Control And Programming

Control Protocols: DMX, RDM, Art-Net, RDM over Art-Net, sACN and P3
Protocol detection: Automatic
Setting and addressing: Display Menu, RDM, RDM over Art-Net or P3
DMX Modes: 3, Basic, Extended and Ludicrous
DMX channels: 54 (Basic), 64 (extended), 70 (Ludicrous)
16-bit Controllable Parameters: Dimming, Color Mixing + CTO, Gobo Rotation, Framing/Framing rotation, Iris, Prism Rotation, Animation wheel Rotation, Zoom, Focus, Pan and Tilt
Fixture Identification: User-settable ID number
DMX compliance: USITT DMX512-A
RDM compliance: ANSI/ESTA E1.20
Art-Net Compliance: Art-Net 1, 2, 3 and 4; including RDM over Art-Net
sACN Compliance: ANSI E1.31 – 2016
Martin P3 Compliance: P3 System Controller Software 5.1.0 or newer
DMX/RDM Transceiver: Galvanic-isolated RS-485
Ethernet Transceiver: 10/100Mbit (with fail-safe bypass)
Firmware update: USB memory device, via DMX using Martin Companion or via Ethernet using P3 System Controller
Universal Connect Module Interface: Multiverse® Connect Module 2.4GHz (P/N 5914), Multiverse® Connect Module 900 MHz (P/N 5915)
NFC Interface: Martin Companion iOS and Android App
Local User Interface: Backlit LCD Display with battery-powered operation
Optics

Front lens diameter: 150 mm
Zoom range: 1:9 zoom range (5.7° – 51° field angle)
Light source: 55 x 20 W White LEDs in a custom Martin engine
Minimum LED lifetime: 50,000 hours (to >80% luminous output)* / >20,000 hours (to >90% luminous output)*
Maximum Total LED Engine Power: 760 W
*Figure obtained under manufacturer’s test conditions
Photometric Data

Light engine luminous output: 56.000 lumens
LED refresh rate : 2400 Hz
Photometric Data With Spectral Enhancement Filter

Fixture luminous output: 18700 lumens
CRI (Color Rendering Index): 90 (+/- 3)
Photometric Data Standard

Fixture luminous output: 28000 lumens
CRI (Color Rendering Index): 68 (+/- 3)
TM-30 Rf (IES TM-30-15 Fidelity Index): 66 (+/- 3)
TM-30 Rg (IES TM-30-15 Gamut Index): 94 (+/- 3)
TLCI (Television Lighting Consistency Index): 44 (+/- 3)
CCT: 5800 K (+/- 250 K)
Peak Luminous Intensity: 2.4 Mcd
Construction

Housing: High-impact flame-retardant thermoplastic
Color: Black
Protection rating: IP54
RoHS: Compliant
REACH: Compliant
Gobos

Maximum image diameter: 22 mm (0.866 in.)
External diameter: 27.1 mm +0 / -0.2 mm (1.067 in. +/ – in.)
Maximum gobo thickness: 1.1 mm (0.04 in.)
Coating: Heavy matted aluminum
Material: Borofloat 33
Installation

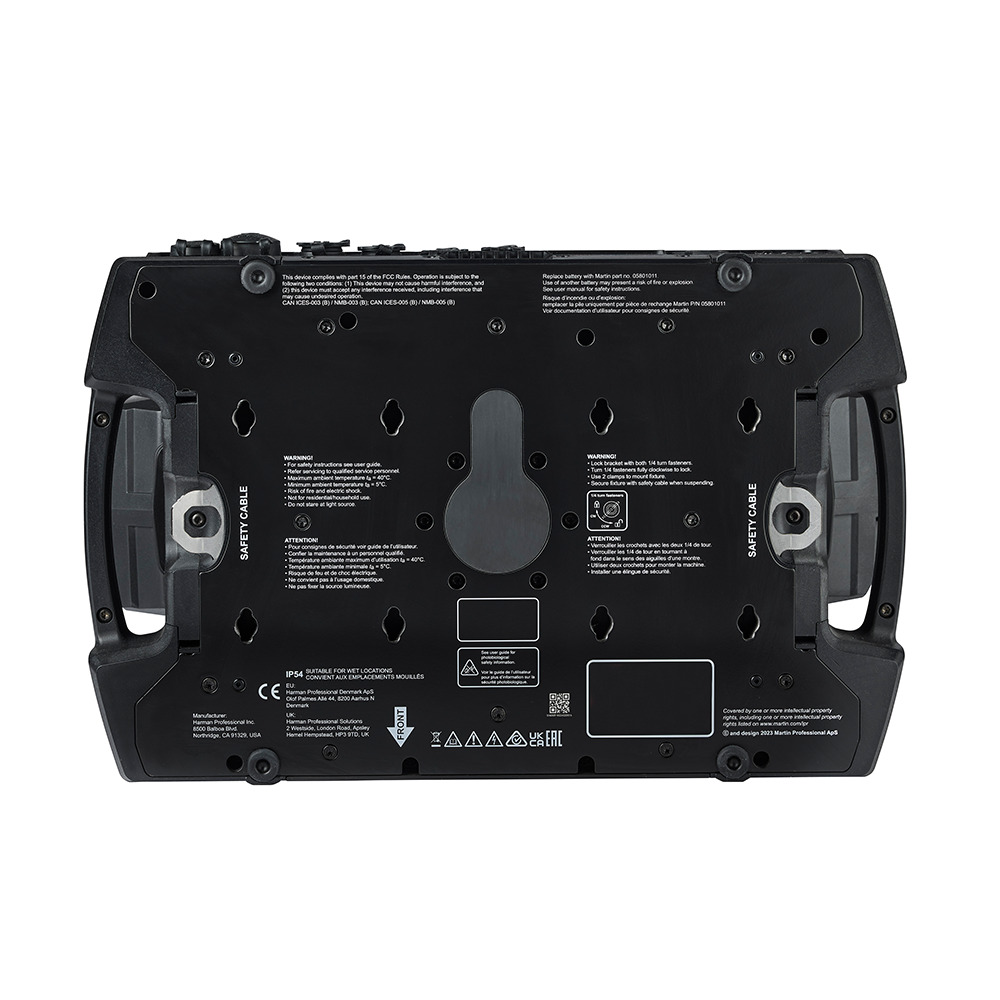

Mounting points: 2 pairs of 1/4-turn points for 106 mm (4.17 in.) center-to-center omega brackets
Location: Indoor or Temporary Outdoor use, must be fastened to surface or structure
Orientation: Any, except with display facing upwards in outdoor application
Minimum distance to combustible materials: 0.2 m (8 in.)
Minimum distance to illuminated surfaces: 3.25 m (10.7 ft.)
Connections

DMX and RDM data in/out: Neutrik 5-pin locking XLR TOP
AC mains power in/thru: Neutrik Rean powerCON TRUE1 TOP
Ethernet (Art-Net, sACN and P3) in/out, including fail-safe bypass: Neutrik etherCON TOP
Firmware from flash memory: USB 2.0 port
Universal Connect Module Interface: Multiverse® Connect Module 2.4GHz (P/N 5914), Multiverse® Connect Module 900 MHz (P/N 5915)
Electrical

AC power: 100-240 V AC nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch mode
Typical half-cycle RMS inrush current at 230 V, 50 Hz: 17.0 A
Typical earth-leakage current: 0.7 mA
Power Factor: 0.99 @ 100 V / 120 V / 208 V / 230 V , 0.98 @ 240 V
Max current draw: 11.0 A @ 100 V / 120 V , 5.2 A @ 200 V , 4.6 A @ 240 V
Typical current draw: 9.5 A @ 100 V , 7.8 A @ 120 V , 4.4 A @ 208 V , 4.0 A @ 230 V , 3.9 A @ 240 V *
Power Consumption
Maximum: 1040 W
Typical: 945 W *
Idle: 120 W *
Hibernation: TBD W *
* Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
Typical: full output white, no effects moving, regulated fan speed.
Idle: no output, no effects moving, regulated fan speed.
Hibernation: no output, motors de-energized, fans stopped, wake-up procedure to re-use fixture.
Thermal

Cooling: Forced air (temperature regulated, low noise)
Maximum ambient temperature (Ta max.): 40° C
Minimum ambient temperature: -10° C (Ta min) – Warm up condition may apply
Maximum surface temperature, steady state, at 40° C ambient: 80° C (176° F)
Total heat dissipation (calculated, +/- 10%): 3550 BTU/hr.
Acoustic Data

Sound Pressure Level (LpA) @ 1 m (default regulated fan mode, full output): 37.7 dB(A)
Sound Pressure Level (LpA) @ 1 m (constant fan mode ultra low): TBD dB(A)
Environmental

RoHS: Compliant
REACH: Compliant
WEEE: Compliant
Proposition 65: Compliant
Efficacy (max output): 29.5 lm/w
LWR*: 760 lm/kg (345 lm/lb)
LWR = Lumen-to-Weight Ratio
