Description

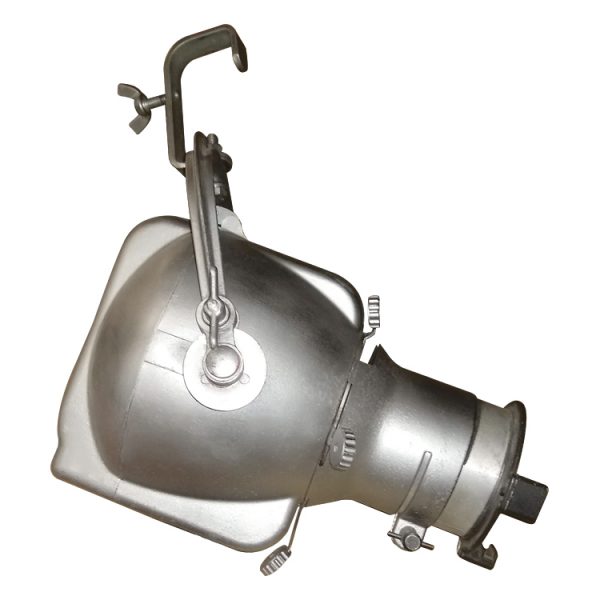

Small, compact lantern with a multitude of applications in stage lighting, picture lighting, shop window display, exhibition work and the like. It gives a clear-cut beam of any required shape and free of stray or ghost light.
Ventilated die-cast aluminium body and lens tube assembly designed with medium prefocus lampholder. Body is hinged at the rear to give access for lamping and cleaning. Rear part carries a 7in diameter super pure anodised reflector and the front half a 7in diameter annular spherical reflector to collect light which would otherwise be masked off and wasted.
The light is directed onto a gate for diaphragm masks which are focussed hard or soft by an adjustable 3½in diameter, 5in focus p.c. lens in tube retained by safety chain. Four diaphragm masks with circular holes supplied as standard. Front of lens tube has runners for one metal colour frame.
