Portman-P2-Hexaline-Front-FacePortman-P2-Hexaline-Front-Face

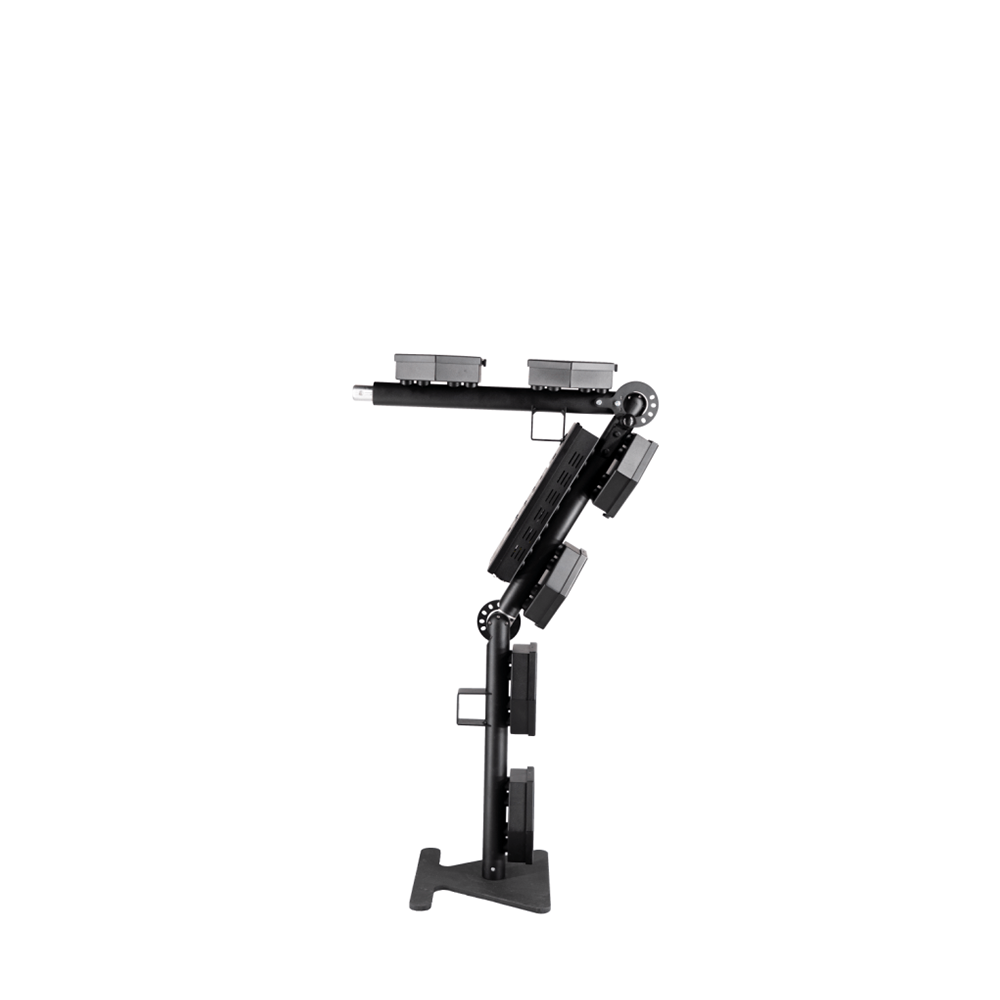

Portman – P2 Hexaline (black with silver reflector)

Portman

It’s Strikingly Beautiful and perfect in every detail.

SKU: WLBLBAP2HEX Categories: , , ,

Description

Modern conveniences like on-board dimmers and 6 channels of DMX control

Feature Quick View

  • Beautiful and high quality
  • 6 separate DMX channels
  • Built in dimmers and electronic kit
  • 6 x 230W halogen bulbs
  • 3- and 5-PIN XLR connectors
  • Built in backlight display
  • Can be easily installed on included base or hang on clamp and build in matrix

Video

P2 HEXALINE – Portman® Lights

Introducing the P2 Hexailine! While complementing the Portman P1, The P2 Hexailine stands on its own…

Additional information

Weight 12 kg
Dimensions

172 x 21 x 17 cm (67.7 x 8.3 x 6.7 in)
Weight

12,5 kg (27,5 lbs)
Rigging

– base (included)
– 2 x 12 mm (1/2 in) holes for clamp on back
– hanging adaptor (included) with 12 mm (1/2 in) hole for clamp on top
Mounting position

Any
Input voltage

230V 50Hz/60Hz
Power consumption

max 1 380W
Power connector

Neutrik PowerCon TRUE1
Control connector

Neutrik 3 & 5 PIN XLR (both: in & out)
Light sources

6 x halogen
R7s 118mm OSRAM Haloline PRO 230V
230 W (high efficiency)
Color temperature

1 600 – 2 900K
CRI

100
Optics

High reflective hammered reflector
Control features

– 6 DMX channels
– RDM
– W-DMX (additional option, can be upgraded any time later)
User interface

– High-contrast LCD display
– Highlighted buttons
Other details

– silver reflector (standard, can be swapped)
– gold reflector (additional option, can be swapped)
– flight cases (4-row) (additional option)
Warranty

24 months
IP rating

IP20
What's in the box

– Fixture
– 2m power cord (PowerCon <-> no plug, naked ends)
– user manual
– 1x spare lamp
– base
– height adaptor
– hanging adaptor
– 3x spigots & cotters
Libraries:

GrandMA2, ChamSys, ADJ MyDMX, Avolites Titan, Wysiwyg, Vectorworks, Capture, Realizzer…

Downloads

User Guide Download
