Robe – Spiider

Robe

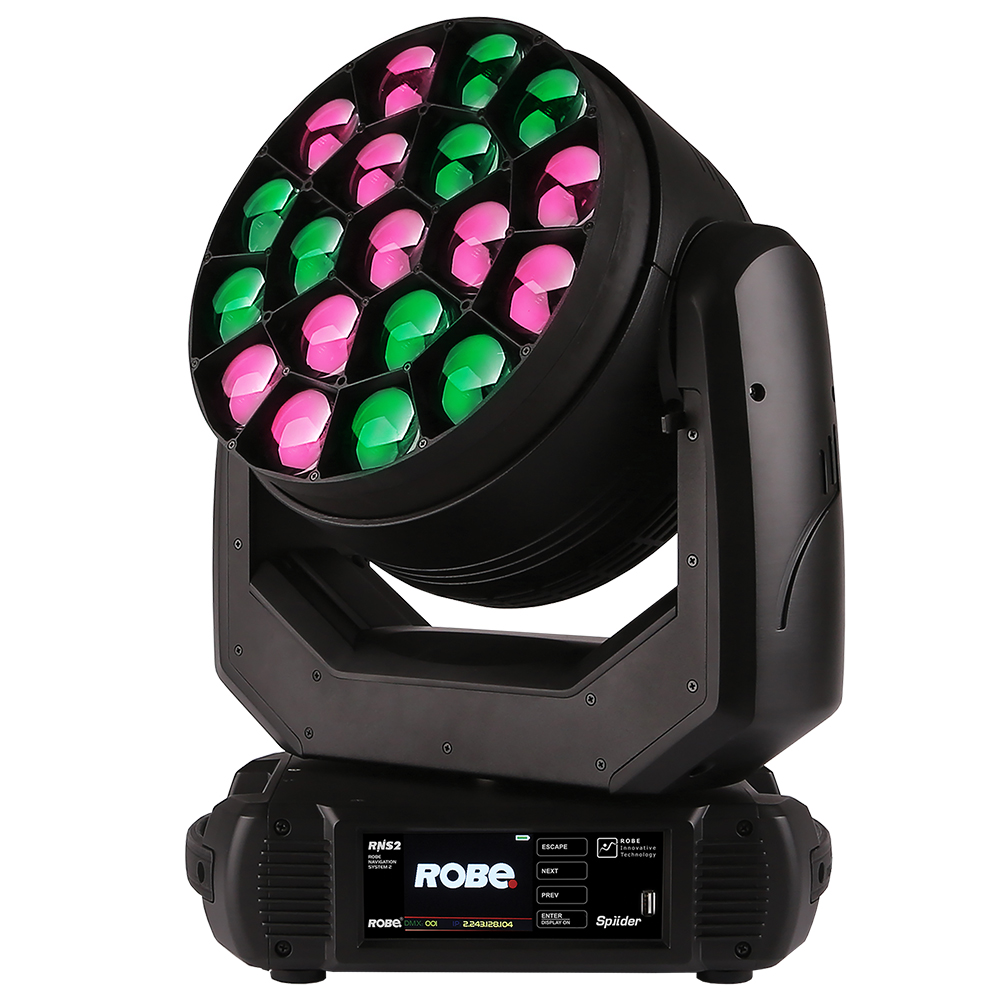

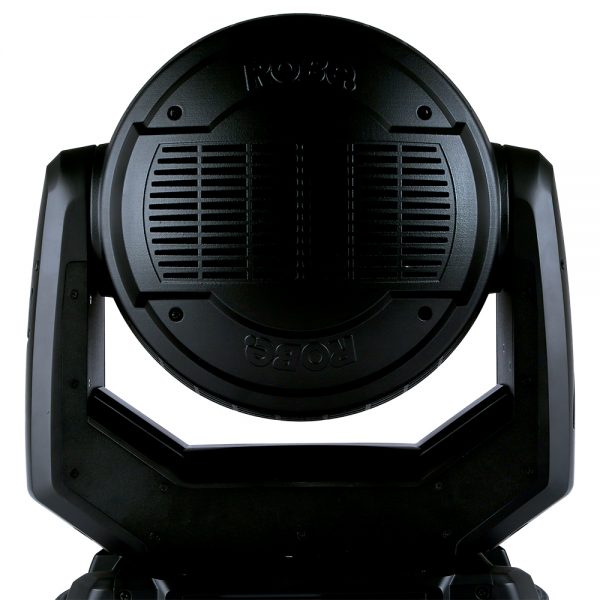

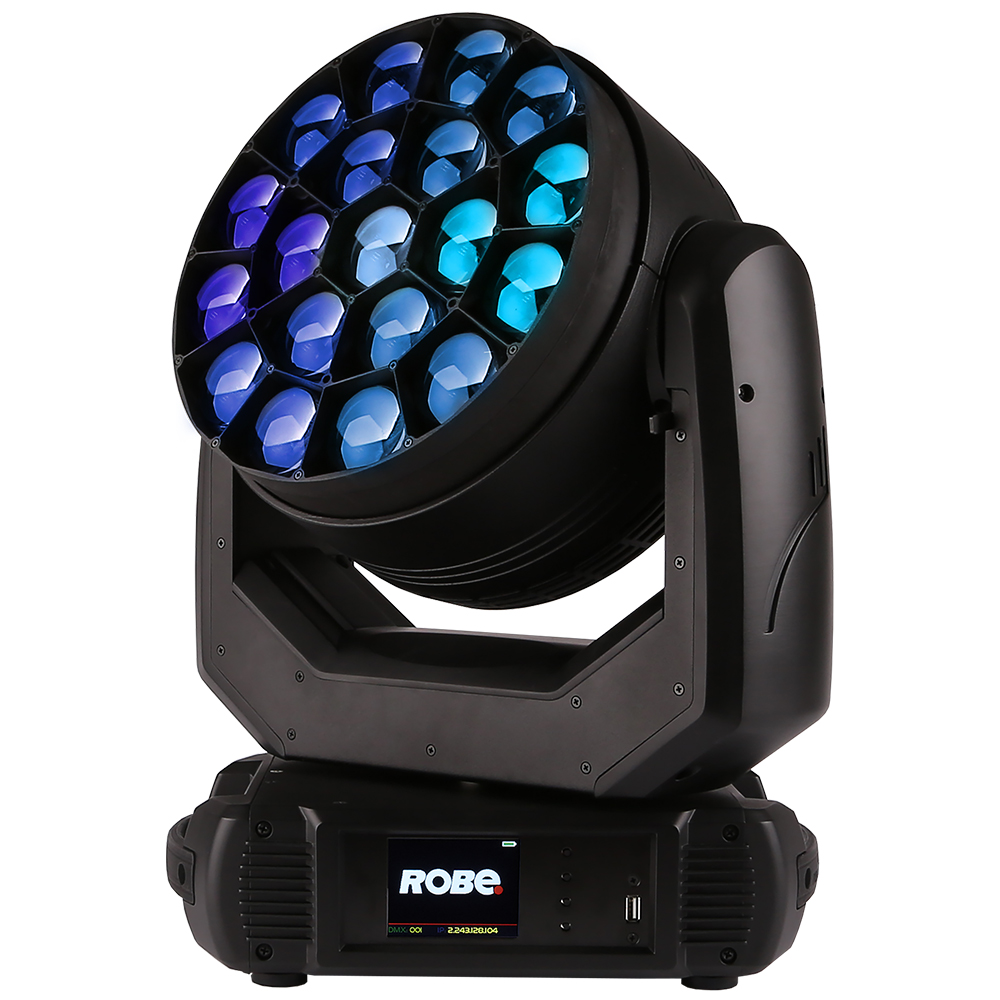

Spiider, a superbright next generation of LED WashBeam luminaires, using 18 x 40 Watt and 1 x 60 Watt LEDs and combining it with a very efficient 12,5 :1 zoom optical system ranging from tight 4° Beam to wide 50° Wash, makes the product in its class the most powerful LED fixture on the market. Now equipped with Robe’s innovative lens coating technology which brings benefits such as bright and clear lenses, no scratches or marks, higher light output and longer intervals between cleaning.

SKU: MLEMVHLEDRBSPIID Categories: , , , ,

Description

Beautiful convergence of hard edge in-air effects, punchy beams and smooth homogenized wash is all encapsulated in the unique Spiider.
Rich colors of 19 powerfull RGBW LEDs can create charming wash light with velvety smooth transitions thanks to internal 18bit LED dimming system.
Dynamic video effects are easily achieved by mapping individual pixels and controlled by DMX desk or media servers via sACN with internal HTP merging, DMX or by Kling-Net protocol.

Unique central piece with Robe patented MCFE™ – Multi-Coloured Flower Effects, is driven by 60W RGBW LED multichip for new innovative sharp multicoloured spikes of light, rotating in both directions at variable speed, adding another new visual effect to the show.

Features

  • LIGHT SOURCE: 1x 60W RGBW and 18 x 40W RGBW LED multichips
  • LIGHT OUTPUT: 11.000 lm, 50.100 lx @ 5m
  • ZOOM RANGE: 4° – 50°
  • EFFECTS: pixel control, MCFE™ – Multi-Coloured Flower Effects, virtual colour wheel, tungsten lamp effect, preprogrammed pixel effects

Video

ROBE lighting – SPIIDER Product Video

See it in action

Additional information

Source

Light Source Type: 1x 60W RGBW and 18x 40W RGBW LED multichips
Typical lumen maintenance: 70% @ 20.000 hours
LED Life Expectancy: min. 50.000 hours
Optical System

Robe’s proprietary optical design
Innovative lens coating technology (Patent pending)
High – efficiency zoom optical system, ratio 12,5:1
Zoom range: 4° – 50°
Fixture total lumen output: 11.000 lm
Light output: 50.100 lx @ 5 m
Dynamic Effects

Colour mixing mode RGBW or CMY
Individual control of each RGBW pixel
Variable CTO: 2.700K – 8.000K
Virtual Colour Wheel: with 66 preset swatches
Tungsten lamp effect at whites: 2.700K and 3.200K (red shift and thermal delay)
Colour rainbow effect with variable speed
Pre-programmed pixel effects with colour, dimming and strobe chases, waves and pulses at variable speed and direction
MCFE™ – Multi-Coloured Flower Effects – creating spectacular multicolour beam effects in the air rotating in both directions at variable speed (patent pending)
Strobe effect: variable speed (max. 20 flashes per second)
Pre-programmed random strobe & pulse effects
High resolution electronic dimming: 0 – 100%
Controls and Programming

Setting & Addressing: ROBE Navigation System 2 (RNS2)
Display: QVGA Robe touch screen with battery backup, gravitation sensor for auto screen positioning, operation memory service log with RTC, stand-alone operation with 3 editable programs (each up to 100 steps), built-in analyser for easy fault finding
Protocols: USITT DMX-512, RDM, Art-Net, MA Net, MA Net2, sACN, Kling-Net
Wireless CRMX™ technology from Lumen Radio (on request)
DMX Protocol modes: 10
Control channels: 49, 27, 33, 90, 27, 46, 91, 110, 103, 123
Pan/Tilt resolution: 16 bit
R,G,B,W colour mixing: 8 or 16 bit (internal 18 bit)
Zoom: 8 bit
Dimmer: 8 or 16 bit (internal 18 bit)
Movement

Pan movement: 540°
Tilt movement: 220°
Movement control: Standard and Speed
Controllable speed of Pan/Tilt movement
EMS™: Electronic Motion Stabilizer system for Pan & Tilt reducing beam deviation caused by truss movement or vibration (Patent pending)
Automatic Pan/Tilt position correction
Thermal Specification

Maximum ambient temperature: 45 °C (113 °F)
Maximum surface temperature: 75 °C (167 °F)
Minimal operating temperature: – 5°C (23 °F)
Electrical Specification & Connections

Power supply: Electronic auto-ranging
Input voltage range: 100-240 V, 50/60 Hz
Power consumption: max. 600 W
Power in connector: Neutric powerCON TRUE1
DMX and RDM data in/out: Locking 3-pin & 5-pin XLR
Ethernet port in/out: RJ45
Embeded Ethernet switch 10/100 Mbps: 1 x in / 1 x out
Mechanical

Height: 477 mm (18.7”)
Width: 390 mm (15.3”)
Depth: 252 mm (9.9”)
Weight: 13,3kg (29.2 lbs)
Ingress protection rating: IP20
Rigging

Mounting positions: Horizontally or vertically
Universal operating position
Mounting points: 2 pairs of 1/4-turn locking points
2x Omega adaptors with 1/4-turn quick locks
Safety cable attachment point
Tilt transport lock
Included Items

User Manual
Omega Adaptor CL-regular 2 pcs
Power cord including powerCON TRUE1 In connector
Accessories

Diffuser 2° for Robin Spiider: 10980416
EggCrate: 10980317
Trigger Clamp Doughty: 17030386
Safety wire 35 kg: 99011963
Single Top Loader Case: 10120195-01
Dual Top Loader Case: 10120207
Quad Top Loader Case: 10120208
Foam Shell: 20020290
