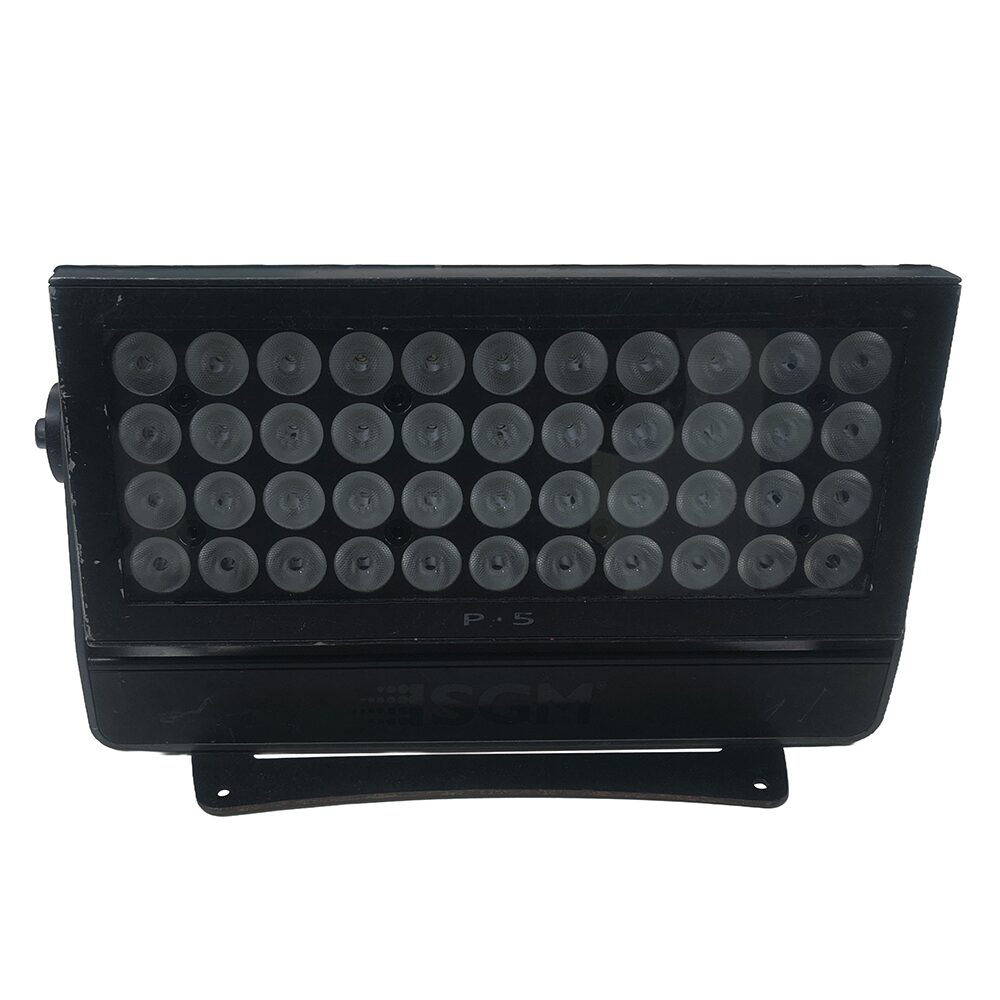

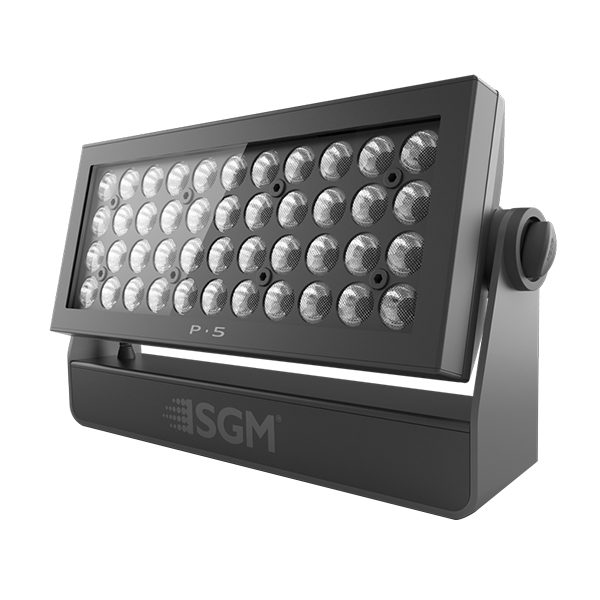

SGM P-5 LED Washlight RGBW (IP55)SGM P-5 LED Washlight RGBW (IP55)

SGM P-5 LED Washlight RGBW (IP65)

SMG

SGM P-5 LED Washlight RGBW has created new standards of colour consistency, even coverage, light output, and smooth dynamic colour balance.

Now For Sale

This ex-hire fixture, along with other well‑maintained event and theatrical equipment, is now available for sale.

To find out more, visit our Ex‑Hires page and register your interest in used equipment.


Ex-Hire Sales


If you’d still Like to Hire this fixture, use the options below.

SKU: WLLLFLP5WASH Categories: , , , ,

Description

The P-5 is the most well-known and reputed IP65 LED wash in the lighting industry. It has created new standards of colour consistency, even coverage, light output, and smooth dynamic colour balance. The P-5 employs 16bit dimming performance with no colour shift, it is completely upgradeable through firmware updates, and it offers a full variety of beam angles for medium-to-longer throw applications via precise, interchangeable lenses. Its unique light projection and colour mixing has made the P-5 the standard reference for lighting designers all around the world.

Features

  • High-performance IP65 RGBW LED light source
  • 43º, 21º interchangeable lenses
  • 20031 lumens in W
  • DMX, RDM, and wireless control
  • 2000K – 10000K CTC control
  • Accurate 16bit dimming performance
  • Practically maintenance-free
  • Flicker-free / Programmable scenes

Additional information

Weight 8.9 kg
Physical

Color options: Black – RAL 9004
IP class: IP65
Lens material: PE and tempered glass front
Material: Aluminium
Net dimensions: 497 x 268 x 122 mm
Features

Dimming: Electronic
Strobe: Ultra-high-speed strobe effects
Tilt: 0 – 190°
Electrical

AC power, max.: 190 – 264V 50/60Hz
AC Power, nominal: 208 – 240V 50/60Hz
Electrical Protection: Overload protection
Max Inrush Current: 45 A
Max power consumption: 450 W
Power factor: 0.98 PF (230 V)
Power Supply Unit: Auto-ranging electronic switch-mode
Standby power consumption: 8 W
Typical power consumption: 420 W
Programming and Control

16-bit control: Dimmer, Red, Green, Blue
Cabled DMX: 5 pin XLR input/output
DMX channels: 3, 4, 6, 8, 9 or 10
DMX modes: 7
Protocol: USITT DMX512A, Wireless DMX (LumenRadio), RDM ANSI E1.20
Setting and addressing: OLED graphical display / 4 buttons, RDM ANSI E1.20, RFID, Standalone mode
Standalone mode: Quick Color, Standalone mode programmable via RFID, Up to 24 programmable scenes
Wireless DMX: Lumen Radio with RDM
Thermal

Cooling: Active, Forced Air, Temperature-regulated
Humidity (max.): 98 %
Temperature range, Operating: -40°C to 50°C
Temperature range, Start-up: -20°C to 50°C
Temperature range, Storage: -40°C to 80°C
Thermal Protection: Automatic overtemperature protection
