Showtec – Cameleon Spot Q4

Showtec

Compact and powerful IP65 15W RGBW LED spot with a fixed beam angle of 16°. Featuring 0-100% dimming and 0-20Hz strobe effect.

Categories: , , ,

Description

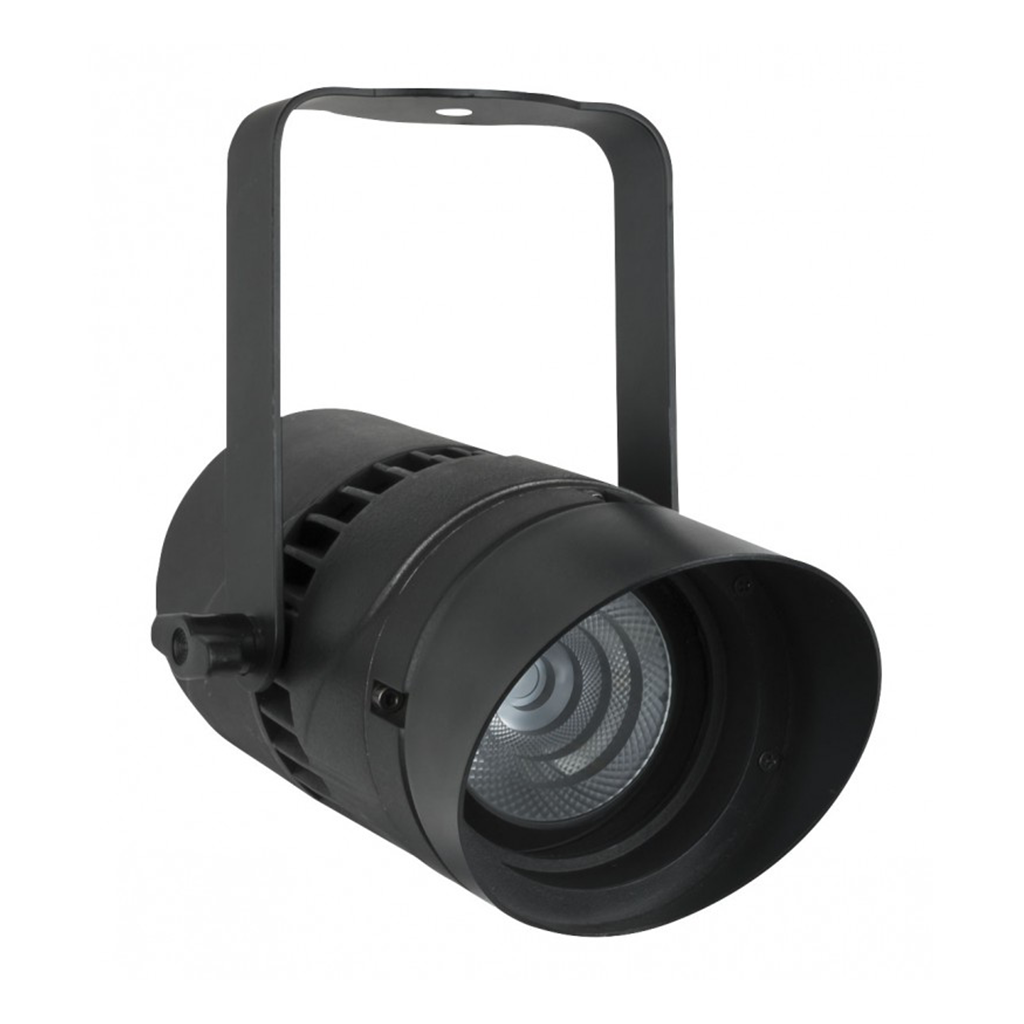

The Showtec Cameleon Spot Q4 is a compact, yet powerful 15 watt RGBW LED Spot with IP65 rating, suitable for indoor and outdoor applications. It has a 16° fixed beam angle and features 0 – 100 % dimmer and 0 – 20 Hz strobe effects. The Cameleon Spot Q4 can be controlled manually, via DMX, IR and Primary/Secondary in either Manual or Auto run mode with many available built-in programs. It comes with a dedicated IP65 power connector and bracket.

Features

  • 15 W RGBW LED Spot
  • IP65 (dust and water resistant, fit for outdoor use)
  • 16° fixed beam angle
  • Dimmer and strobe function
  • Manual, DMX, IR and Primary/Secondary control

Additional information

Source

Light Source Type: LED
Light Source Quantity: 1
Light Source Power: 15 W
LED Colour Type: RGBW
Refresh Rate (Max.): 12 kHz
Luminous Flux (Total): 570 lm
Optical

Beam Angle (Circular): 16 °
Control and Programming

Control Mode: Auto, DMX, Primary/Secondary
DMX Channels: 4, 6, 10
Protocols: DMX, RDM
Display: OLED
Dynamic Effects

Dimmer 0-100 %
Strobe 0-20 Hz
Electrical Specifications and Connections

Power Supply: 100-240 V AC 50/60 Hz
Power Consumption: 20 W
Power Connector In: Dedicated IP65 Powerconnection
Power Connector Out: Dedicated IP65 Powerconnection
DMX Connector: Dedicated 3P IP65 In/Out
DMX Connector In: Dedicated 3P IP65
DMX Connector Out: Dedicated 3P IP65
Cable Length: 1.5 m
Mechanical Specifications

Length (mm): 155 mm (6.102″)
Width (mm): 235 mm (9.252″)
Height (mm): 195 mm (7.677″)
Weight: 2 kg (4.409 lb)
IP Rating: IP65
Housing: Aluminium
Colour: Black
Product Properties

Cooling: Convection
Rigging

Mounting Options: Clamp
Thermal Specifications

Maximum Ambient Temperature: 40 °C (104 °F)
Minimum Operating Temperature: -5 °C (23 °F)
Included Items

Included Cables: Dedicated IP65 Powerconnection
Included Rigging: Bracket
